TA7291S electric motor driving integrated circuit

Published:2011/6/16 0:59:00 Author:chopper | Keyword: electric motor, driving, integrated | From:SeekIC

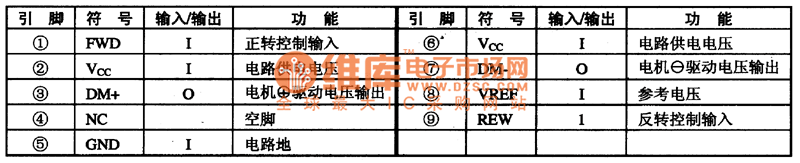

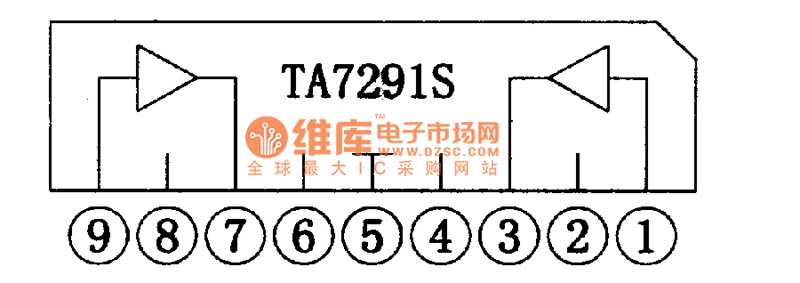

TA7291S is a bidirectional control motor driving integrated circuit produced by Company TOSHIBA.It is applied to laser player to the load motor drive.1.The inner circuitTA72915 integrated circuit includes two motor driving integrated circuits.Its inner circuit is shown as picture 1. 2.function of pinsTA72915 integrated circuit adopts 9 pins single inline package.Its functions of pins of integrated circuitare shown as chart 1.
