TA7291P--the motor drive integrated circuit

Published:2011/6/9 22:43:00 Author:qqtang | Keyword: motor drive, integrated circuit | From:SeekIC

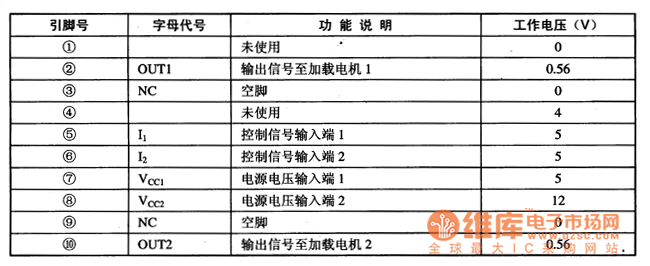

TA7291P is the dual-way motor drive integrated circuit produced by Toshiba, which is widely used in CD, VCD and other players.1.function featuresTA7291P contains two lines of same-function motor drive circuits, decoding drive control circuit, and other affiliated function circuits. The internal circuit of the IC is shown in figure 1.Figure 1. The internal circuit of TA7291P 2.pin functions and dataTA7291P is in 10-pin single line package, whose pin functions and data are listed in table 1.
