Superheterodyne receiving module RXB6

Published:2011/8/9 17:39:00 Author:Vicky | Keyword: Superheterodyne receiving module | From:SeekIC

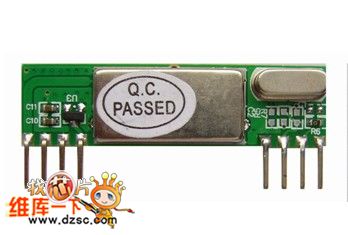

This RF wireless high-frequency receiving module, RXB6, is of high sensitiveness, which reaches -110dBm. It adopts ASK receiving mode, which is available for remote control, far- end control, remote control vehicle, data transmission, anti-theft alarm, home appliance control, wireless toy, vehicle-burglar alarm, wireless backup radar, remote garage gate control , remote motor-driven curtain, flexible door , remote strobe control. It is also an ideal choice GSM/GPS vehicular system set, industry control and systems of high complicated environmental requirement. It can take the place of infrared receptor. It can receive signals from omnidirectional direction and is easy to be added to general remote controls. Key Feature: 315/433.92/868/914.5MH receiving module Built-in AGC Low working voltage: 3.0V~5.5V Low current: 315MHZ/433.92MHZ(it is available to be connected to power-saving mode in the outside and the start-up time is 250µs; the low-current shutdown mode is 30mA, which effectively saves power) High sensitiveness: -110dBm Working temperature: -40℃~+85℃ Size of the appearance: 43.2×12.3×5mm
