Shanghai GM Sail Engine Circuit

Published:2011/7/29 19:41:00 Author:Robert | Keyword: Shanghai, GM, Sail, Engine | From:SeekIC

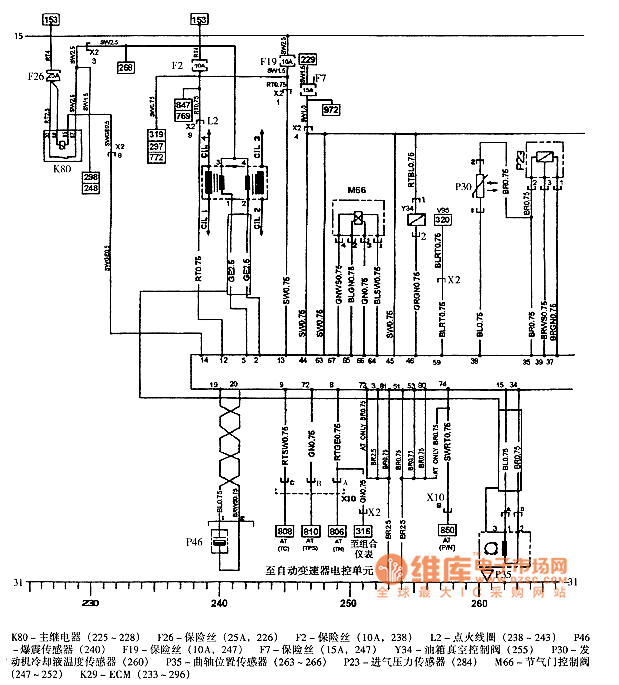

The picture shows the Shanghai GM sail engine circuit. In the circuit, the K80 is the main relay (225-228). The F126 is fuse (25A, 226). The F2 is fuse (10A, 238). The L2 is ignition coil (238-243). The F46 is knock sensor (240). The F19 is fuse (10A, 247). The F7 is fuse (15A, 247). The Y34 is oil box vacuum control valve (255). The P30is engine cooling fluid temperature sensor (260). The P35 is crankshaft position sensor (263-266). The P23 is intake air pressure sensor (284). The M66 is throttle control valve (247-252). The K29 is ECM (233-296).
