Published:2011/9/8 1:49:00 Author:Sue | Keyword: Score Indicator | From:SeekIC

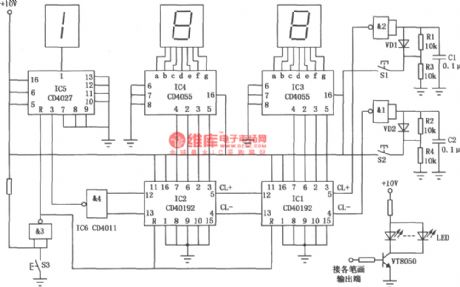

The picture shows the score indicator circuit. It is used to display the match score. The first digital tube has only 2 states, that is off or l . The two tubes behind can display ten states of 0 - 9 , so the score indicator can display as high as 199 scores. The circuit mainly consists of counter, decoding circuit, trigger circuit, display circuit and jitter buffer switch circuit.
