Saiou ABS circuit diagram

Published:2011/8/29 21:15:00 Author:Jessie | Keyword: Saiou ABS | From:SeekIC

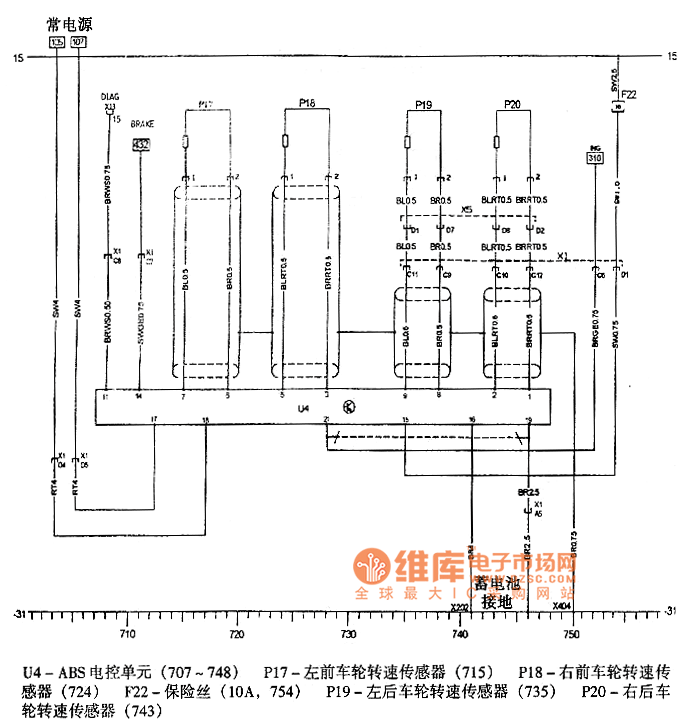

U4-ABS electronic control unit (707 ~ 748), P17-left front wheel speed sensor (715), P18-right front wheel speed sensor (724), F22-fuse (10A, 754), P19-left rear wheel speed sensor (735 ), P20-right rear wheel speed sensor (743).
