SINGLE_TRANSISTOR_AUTO_TACHOMETER

Published:2009/7/16 3:49:00 Author:Jessie | From:SeekIC

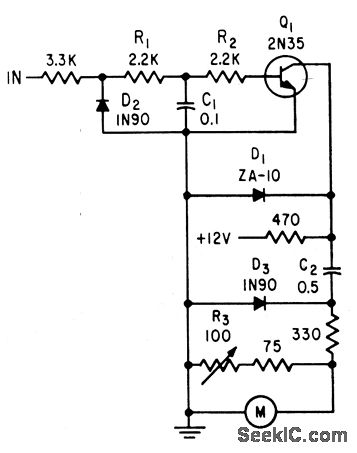

Uses zener diode to compensate for variations in 12-v supply. Meter is calibrated in rpm, using R3 for 0ncl adjustment. Range is 0 to 6,000 rpm. Input is ignition wave-form.-J. Cowan, Auto Tachometer Uses Transistor, Electronics, 31:33, p 92-94.
