SHANGHAI GM BUICK(Royaum) saloon car windshield wiper/scrubber circuit diagram

Published:2011/4/21 21:14:00 Author:muriel | Keyword: SHANGHAI GM BUICK(Royaum) , saloon car, windshield wiper, scrubber | From:SeekIC

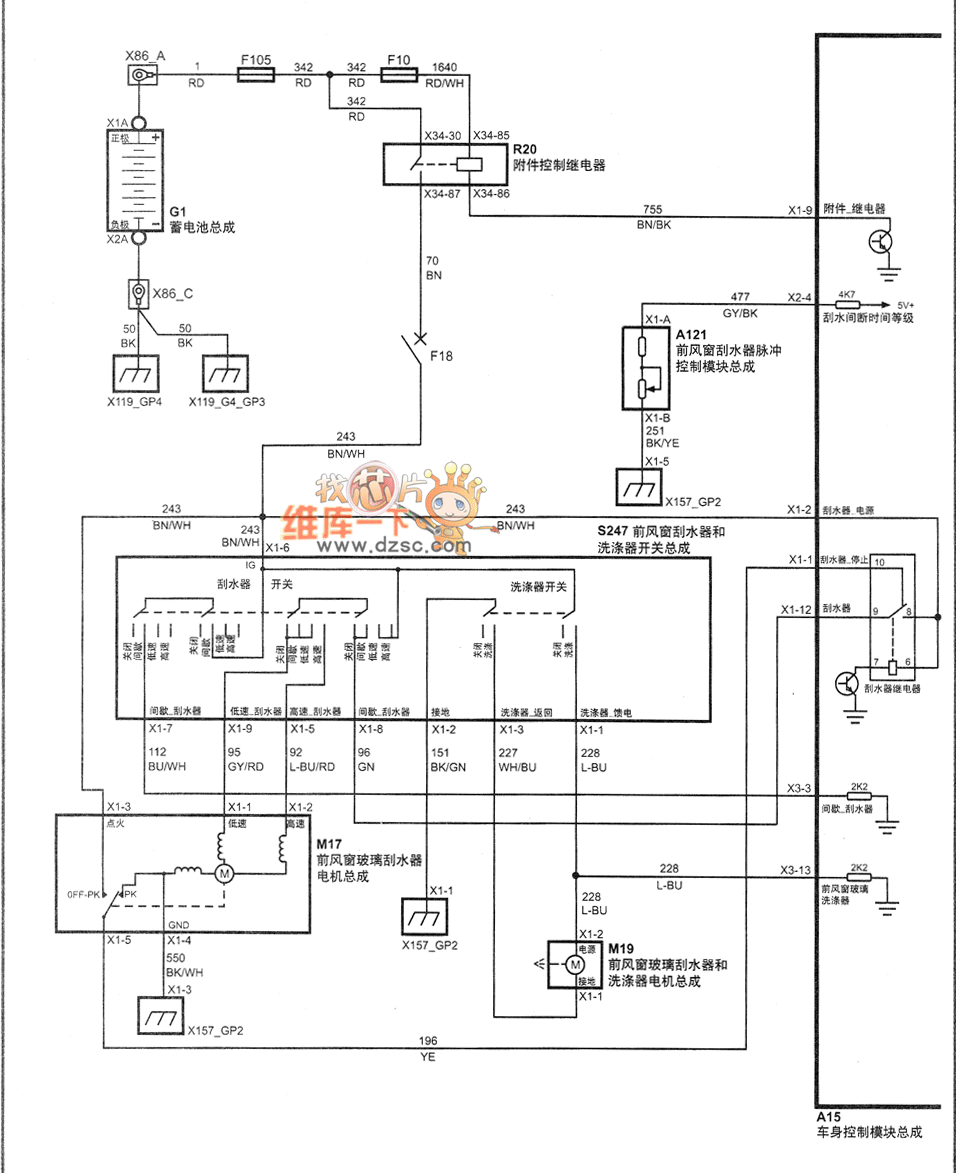

Figure SHANGHAI GM BUICK(Royaum) saloon car windshield wiper/scrubber circuit diagram
