SHANGHAI GM BUICK(LaCROSSE) saloon car supplementary restraint system circuit diagram(four)

Published:2011/4/18 1:38:00 Author:muriel | Keyword: SHANGHAI GM BUICK(LaCROSSE), saloon car, supplementary restraint system | From:SeekIC

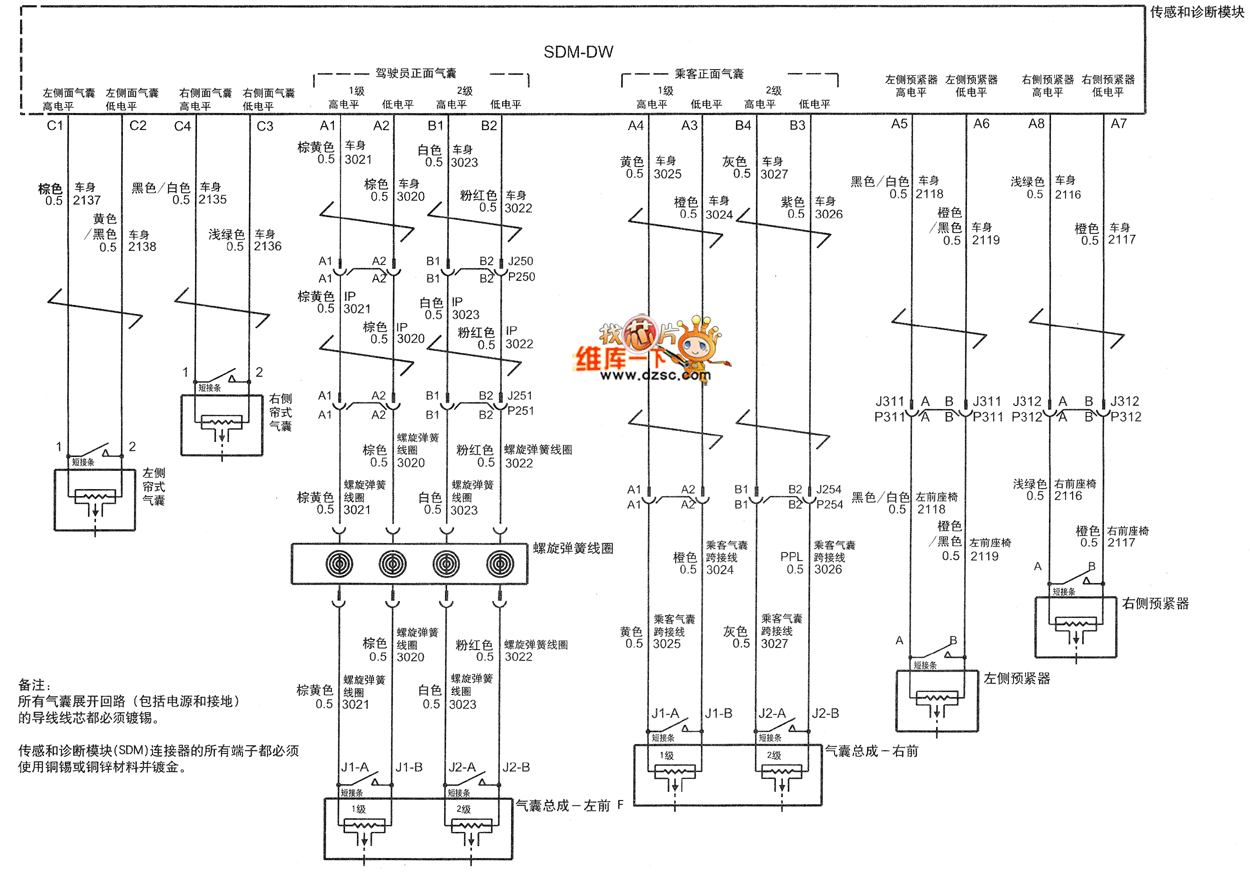

SHANGHAI GM BUICK(LaCROSSE) saloon car supplementary restraint system circuit diagram(four) is as shown Remarks: The core wires of all loop expaned airbags must be tinned. All terminals of Sensing and diagnosis module (SDM) must use Cu-Sn or Copper-zinc and get gilded.
