SHANGHAI GM BUICK(Excelle) saloon car automatic transmission circuit diagram(three)

Published:2011/4/19 1:09:00 Author:muriel | Keyword: SHANGHAI GM BUICK(Excelle), saloon car , automatic transmission | From:SeekIC

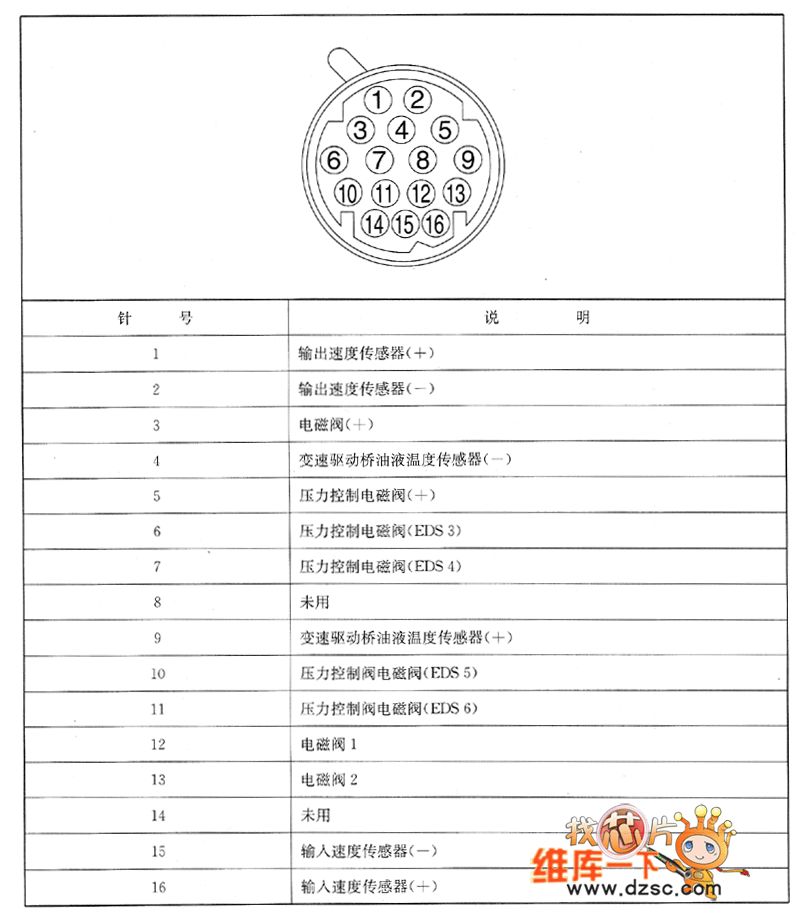

Figure SHANGHAI GM BUICK(Excelle) saloon car automatic transmission circuit diagram(three) Pin description 1 output speed sensor(+) 2 output speed sensor(-) 3 solenoid valve(+) 4 variable speed drive bridge oill temperature sensor(-) 5 pressure control solenois valve(+) 6 pressure control solenois valve(EDS3) 7 pressure control solenois valve(EDS4) 8 unused 9 variable speed drive bridge oill temperature sensor(+) 10 pressure control solenois valve(EDS5) 11 pressure control solenois valve(EDS6) 12 solenoid valve 1 13 solenoid valve 2 14 unused 15 input speed sensor(-)
