SCS_SINGLE_PULSE_GENERATOR

Published:2009/7/16 3:11:00 Author:Jessie | From:SeekIC

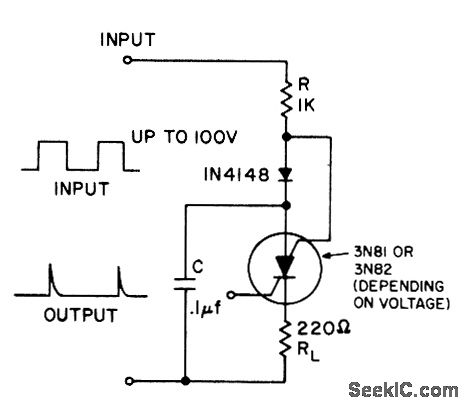

Gives one output pulse for each positive-going input. Can be used as tachometer, power loss detector, or peak detector.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 434.
