Reversible DC motor control drive circuit diagram

Published:2011/4/29 4:27:00 Author:Rebekka | Keyword: Reversible DC, motor control drive | From:SeekIC

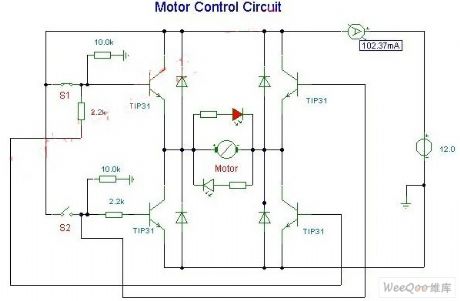

Small DC motor reversible control drive circuit is shown as above. The diode uses 1N4001 series rectifier diode. Two LEDs are mainly used for showing the direction of motor rotation.
