Positive dual periphery or driver circuit

Published:2011/7/27 2:10:00 Author:Fiona | Keyword: Positive dual periphery or driver circuit | From:SeekIC

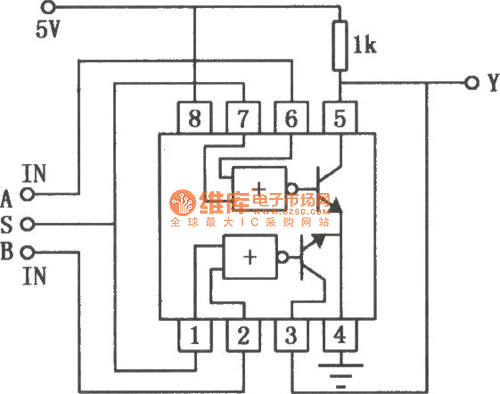

SN55453/75453B is a externaldrive with or logic and it’s input is compatible with TTL or DTL circuit. SN55453/75453B’s input current is 300mA,with high inputvoltageand high conversion speed. The typicalapplication circuitis shown as above.
