Polo Power Steering System Circuit

Published:2011/7/26 10:16:00 Author:Robert | Keyword: Polo, Power, Steering System | From:SeekIC

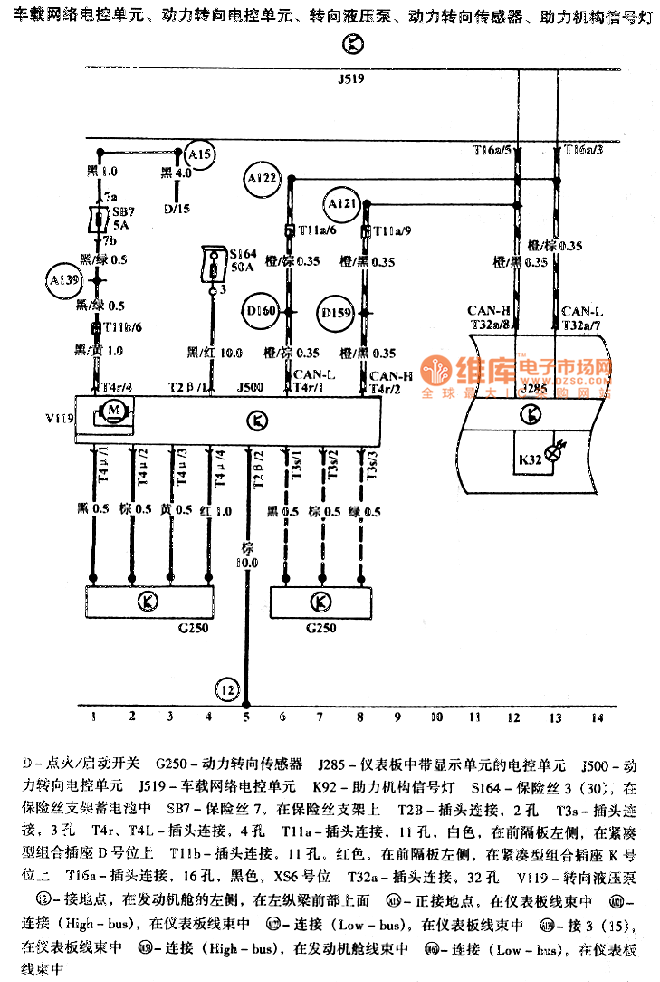

The picture shows the Polo power steering system circuit. In this circuit the D is ignition/starting switch. The G250 is power steering sensor. The J285 is the dashboard ECU with monitor. The J500 is power steering ECU. The J519 is car network ECU. The K92 is assistance mechanism signal lamp. The S164 is fuse. The SB7 is fuse 7 on the fuse holder. The T2B is plug with 2 holes. The T3e is plug with 3 holes. The T4r, T4L are plugs with 4 holes. The T11a is plug with 11 holes. The T11b is plug with 11 holes. The T16a is plug with 16 holes. The T32a is plug with 32 holes. The V119 is steering hydraulic pump. And so on.
