Polo ABS Circuit

Published:2011/7/26 8:26:00 Author:Robert | Keyword: Polo, ABS | From:SeekIC

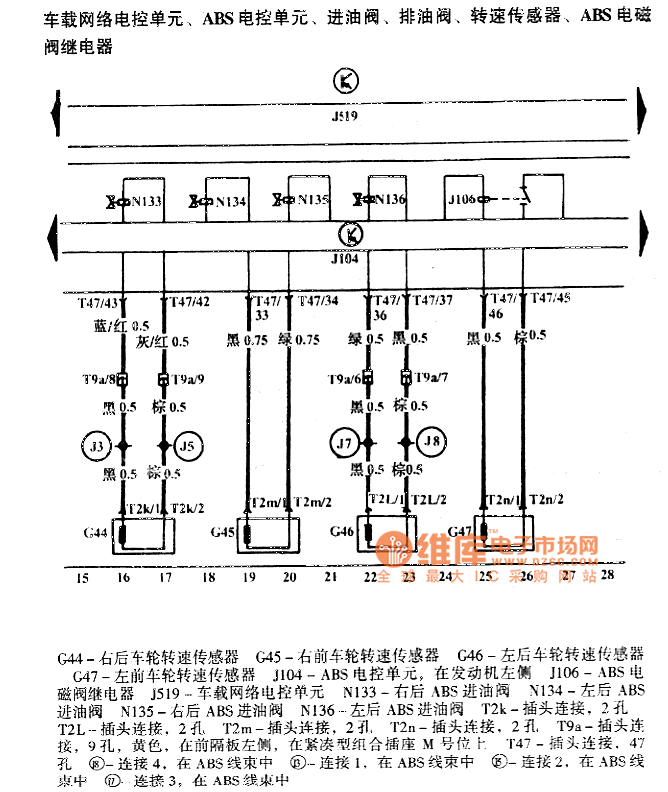

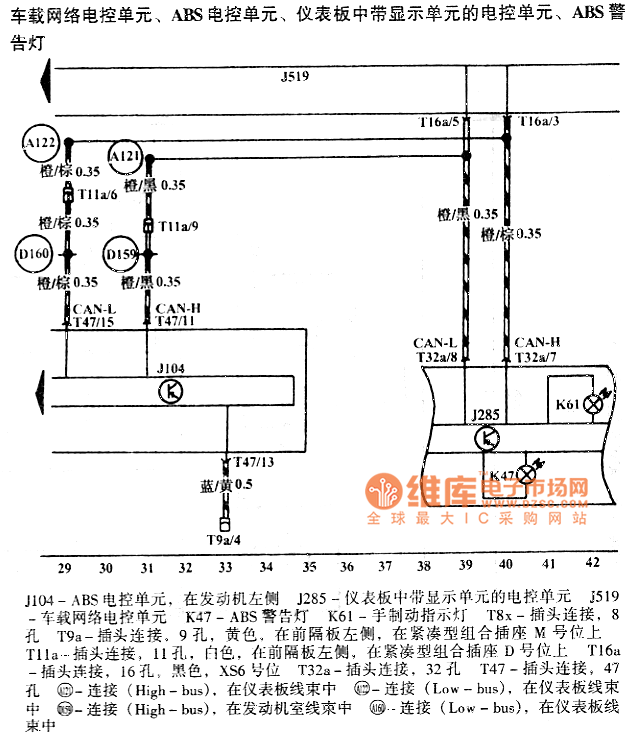

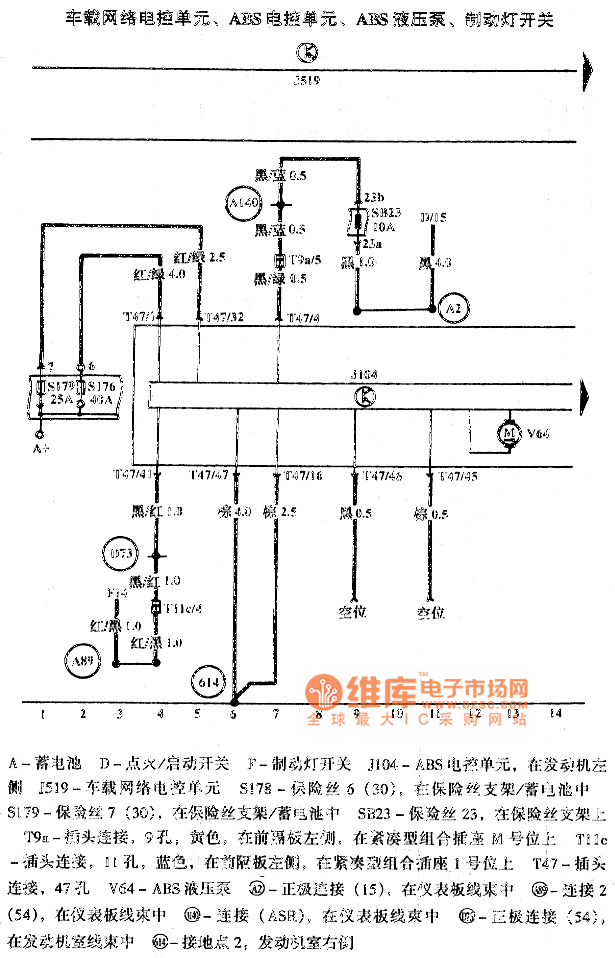

The pictures show the Polo ABS circuit. The first picture shows the car network ECU, ABS ECU, ABS hydraulic pump, brake lamp switch. The second picture shows the car network ECU, ABS ECU, oil-feed pump, oil drain pump, rotationl speed sensor, ABS electromagnetic pump relay. The third picture shows the car network ECU, ABS ECU, dashboard ECU with display unit, ABS alarm lamp. In the picture the J104 is ABS ECU which is at the left side of engine. The J285 is dashboard ECU with display unit. The J519 is car network ECU. The K47 is ABS alarm lamp. The K61 is hand brake lamp. And so on.
