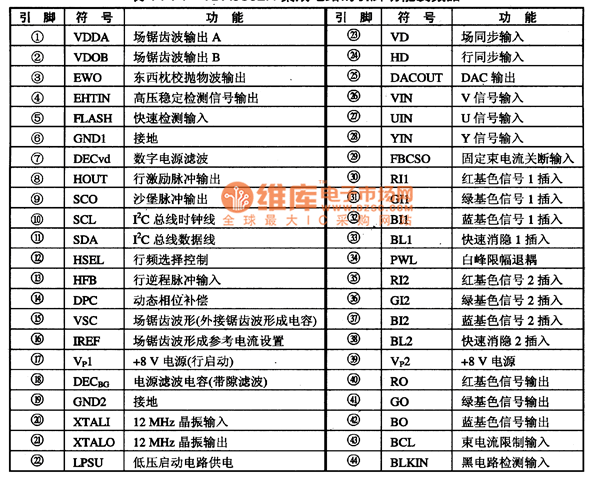

Pin function and data circuit composed of TDA9332H integrated circuit

Published:2011/7/21 2:44:00 Author:Fiona | Keyword: Pin function and data, integrated circuit | From:SeekIC

Features(1)It has a YUV input terminal and the RGB signal input terminal with fast blanking, not only OSD / Text input terminal is separate from other video signal input terminals,but also has fast vanishing function and can be mixed in;meanwhile,it is equipped RGB control processor to implement continuous cathode calibration (CCC), white point and black level offset adjustment;it can provide a stable BGR output to dark current. (2)It can generate programmable deflection processor of internal clock,this drive signal,including line drivers,field deflection and east and west corrected parabolic wave,it is suitable for 4:3 CRT and adapts to 16:9 CRT too.
