Output choice relation table circuit

Published:2011/8/10 7:18:00 Author:Fiona | Keyword: Output choice relation | From:SeekIC

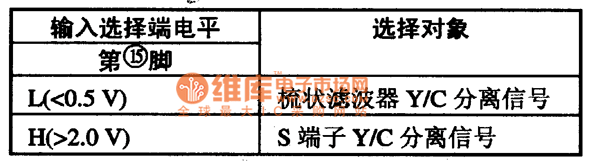

electrical level of the input choice terminal selection objects the 15 pin L (<0.5 V) comb type filter Y/C separation signal H (>2.0 V) S terminal Y/C separation signal
