Outlander Jeep engine ingition system circuit diagram

Published:2011/5/12 22:22:00 Author:Nicole | Keyword: Outlander Jeep, engine, ingition system | From:SeekIC

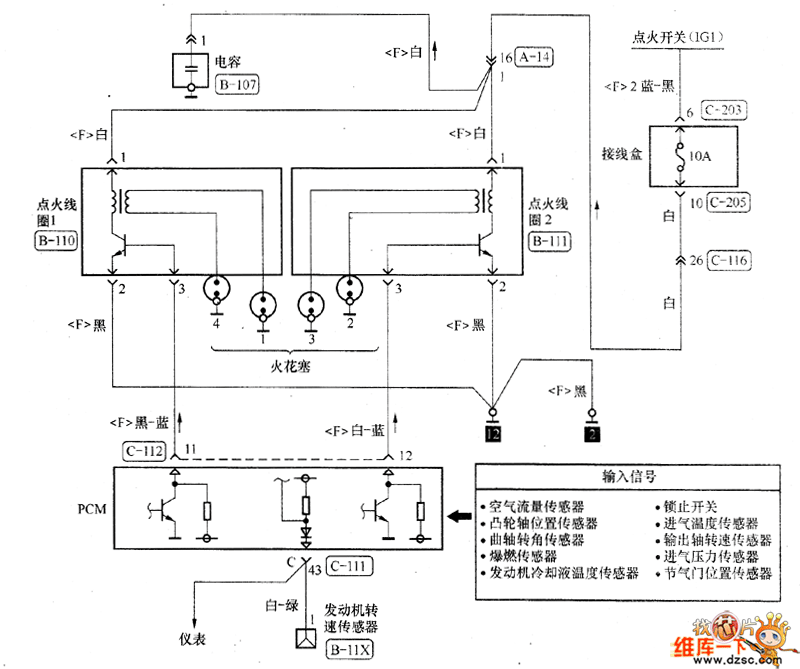

The engine ingition system circuit diagram is as shown, this engine has two ignition coils, the ignition coil 1 isused by 1 vat and 4 vat, the ignition coil 2 isused by 2 vat and 3 vat, because the 1 vat and 4 vat do not work at the same time, so the ignition coil 1 does not work. The ignition switch is cut off, the porous plug of two ignition coils are pulled down, then the ignition switch is turned on, a test lamp is adopted to measure(when it detects the power supply circuit, it should use test lamp to detect).
