Other detection circuits of Santana 20OOGLi

Published:2011/5/15 0:40:00 Author:Borg | Keyword: detection circuits, Santana | From:SeekIC

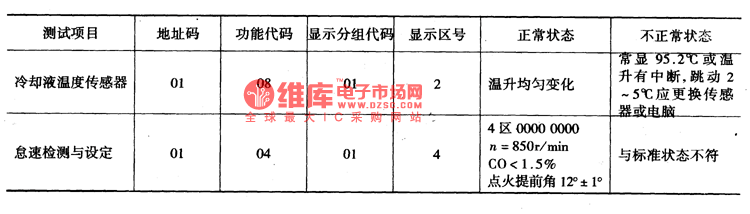

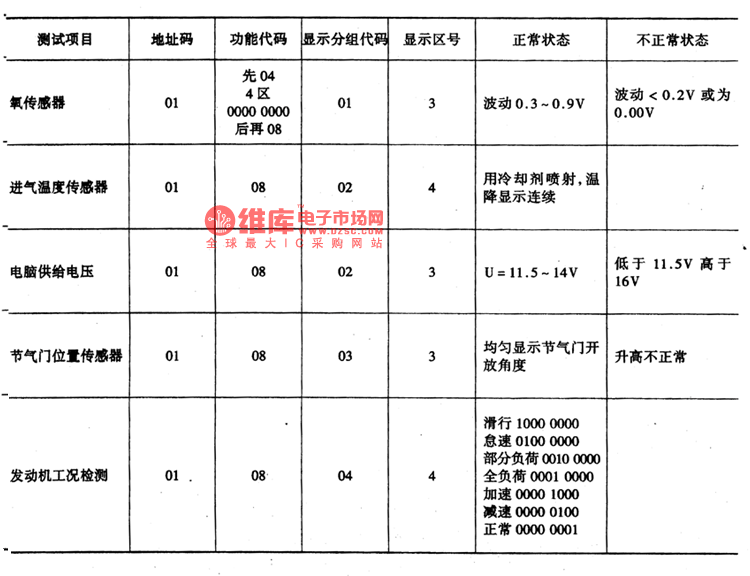

With V.A.G151 fault diagnosis equipment, we can not only find out the fault position,but also detect the working parameters of relevant parts, which can provide dependable back-up for exactly judging faults. Apart from the above detectors, there are also throttle sensors. Furthermore, the coolant temperature sensors, admission temperature and computer power voltage can be detected with V.A.G diagnosis meter. The measuring methods are almost the same, just remember the address code of 01, and input the relevant function codes, then detection is to start.
