Oscillating Circuit Composed of TC5082P

Published:2011/8/25 7:45:00 Author:Sue | Keyword: Oscillating Circuit | From:SeekIC

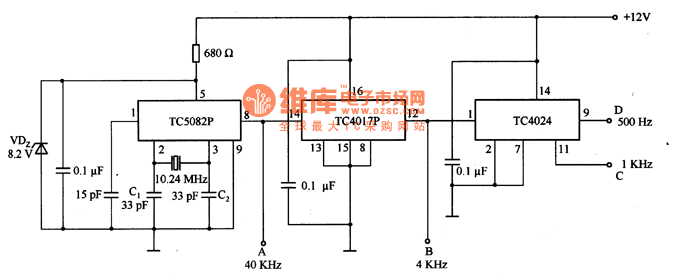

The picture shows the oscillating circuit which is composed of TC5082P. TC5082Pis a kind of integrated circuit which is used by PLL frequency synthesizer with 12 grade frequency divided circuit inside, and it has a wide use range. If the crystal oscillator's frequency is 10.24KHZ, then TC5028P's pin 8 can outputa signal of frequency of 40kHZ and its pin 7 can output a signal of frequency of 10kHZ, pin 6 can output a signal of frequency of 5kHZ, pin 4 can output a signal of frequency of 2.5 kHZ. If TC4017 and TC4024 are connected, then TC5028P's pin 8 will output a signal of frequency of 40kHZ, which will output a signal of frequency of 4KHZ on B terminal after it is frequency divided by TC4017P10.
