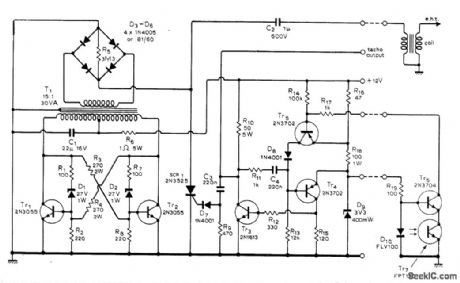

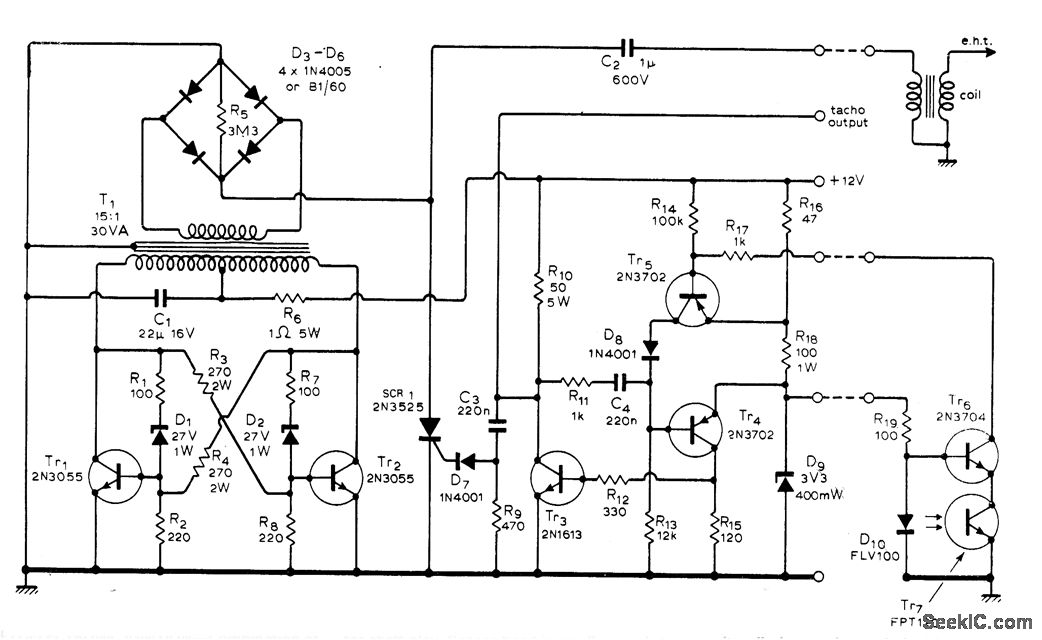

Combination of Iow-cost point-source LED and high-sensitivity phototransistor forms optical sensor for posi-tion of cam in distributor, Technique eliminates problems created by timing drift and distribu-tor-shaft play. Sensor head is small enough to fit most distributors. Article gives dimensioned drawings for shutter design and sensor mount-ing, and describes operation of associated capacitor-discharge electronic ignition circuit in detail. Leads to sensor do not require shielding.-H. Maidment, Optical Sensor lgnition System, Wireless World, Nov.1975, p 533-537.
