Mitsubishi Pajero puddle jumper schematic outline diagram

Published:2011/8/14 22:08:00 Author:Ecco | Keyword: Mitsubishi Pajero , puddle jumper , schematic outline diagram | From:SeekIC

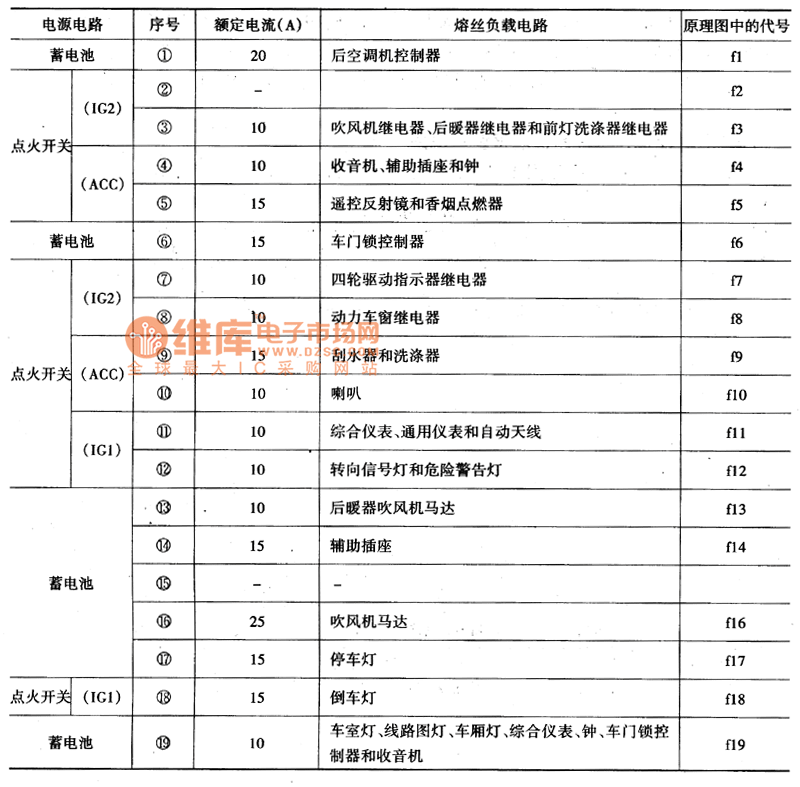

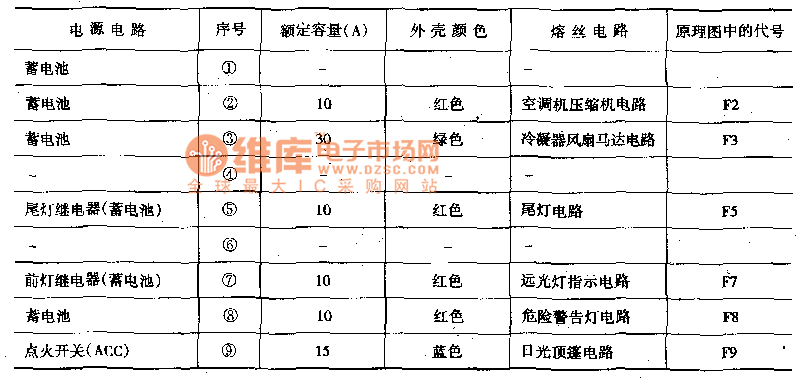

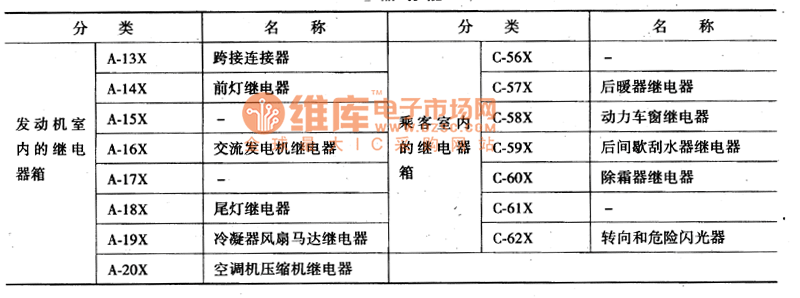

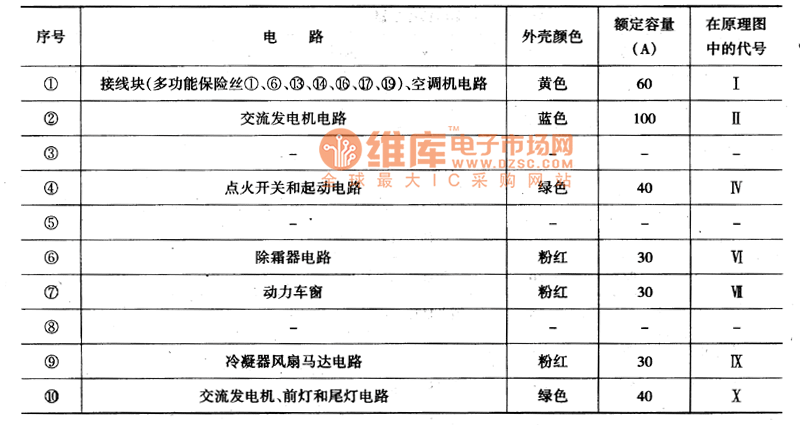

Pajero puddle jumper circuit outline is shown in Figure 1 to Figure 4, and people should pay attention to distinguish between the fusible wire, dedicated fuse and multi-fuse fuse and their different capacities, different location when they detect it.
