Meiri 4-Cylinder EFI A8 Engine Circuit

Published:2011/8/2 8:44:00 Author:Robert | Keyword: Meiri, 4-Cylinder, EFI, A8, Engine | From:SeekIC

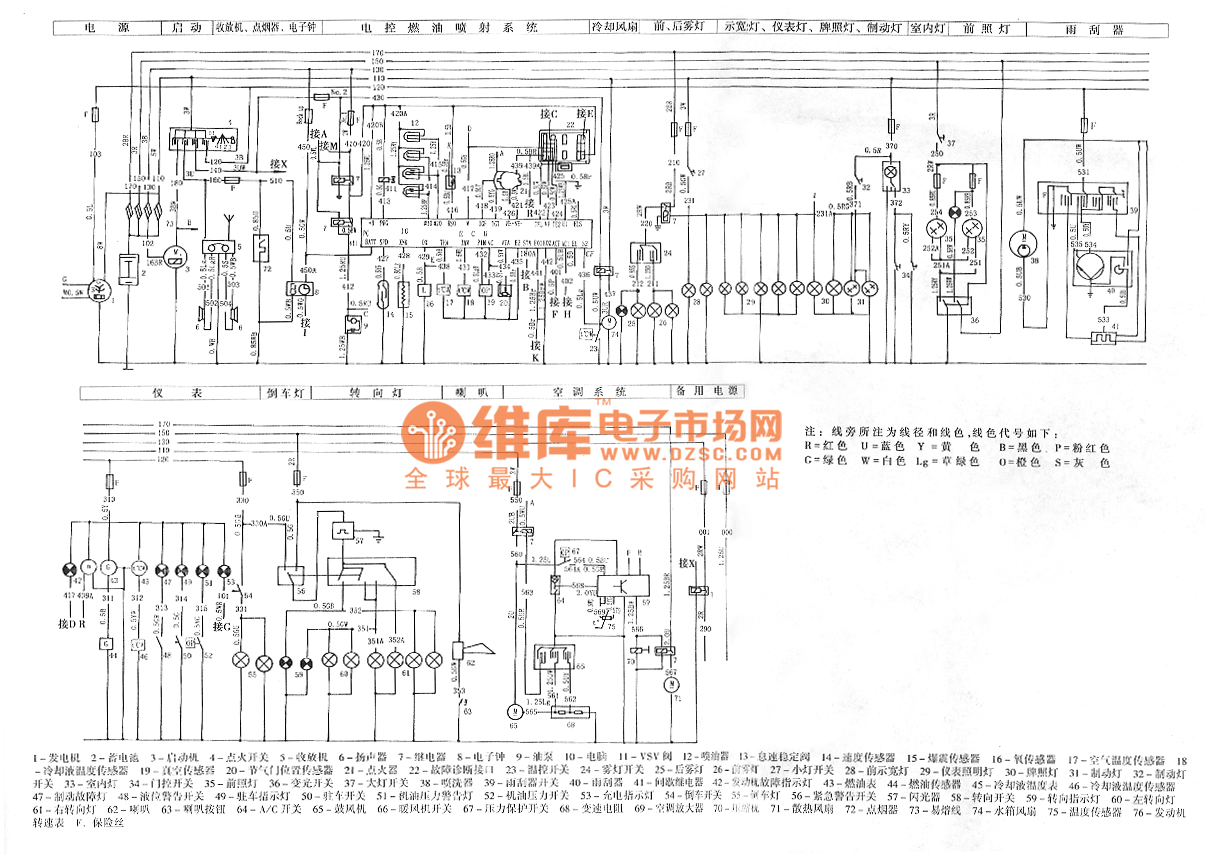

The picture shows the Meiri 4-cylinder EFI A8 engine circuit. In the picture the part 1 is generator. The part 2 is battery. The part 3 is starting machine. The part 4 is ignition switch. The part 5 is cassette players. The part 6 is speaker. The part 7 is relay. The part 8 is electronic clock. The part 9 is oil pump. The part 10 is computer. The part 11 is VSV value. The part 12 is oil injector. The part 13 is idle stabilization valve. The part 14 is speed sensor. The part 15 is knock sensor. The part 16 is oxygen sensor. The part 17 is air temperature sensor. The part 18 is cooling fluid temperature sensor. The part 19 is vacuum sensor. The part 20 is throttle position sensor. The part 21 is ignition device. The part 22 is fault diagnosis interface. And so on.
