Mazda 96 PROBE Shift Gear Interlocking Circuit

Published:2011/8/11 8:30:00 Author:Robert | Keyword: Mazda, PROBE, Shift Gear, Interlocking | From:SeekIC

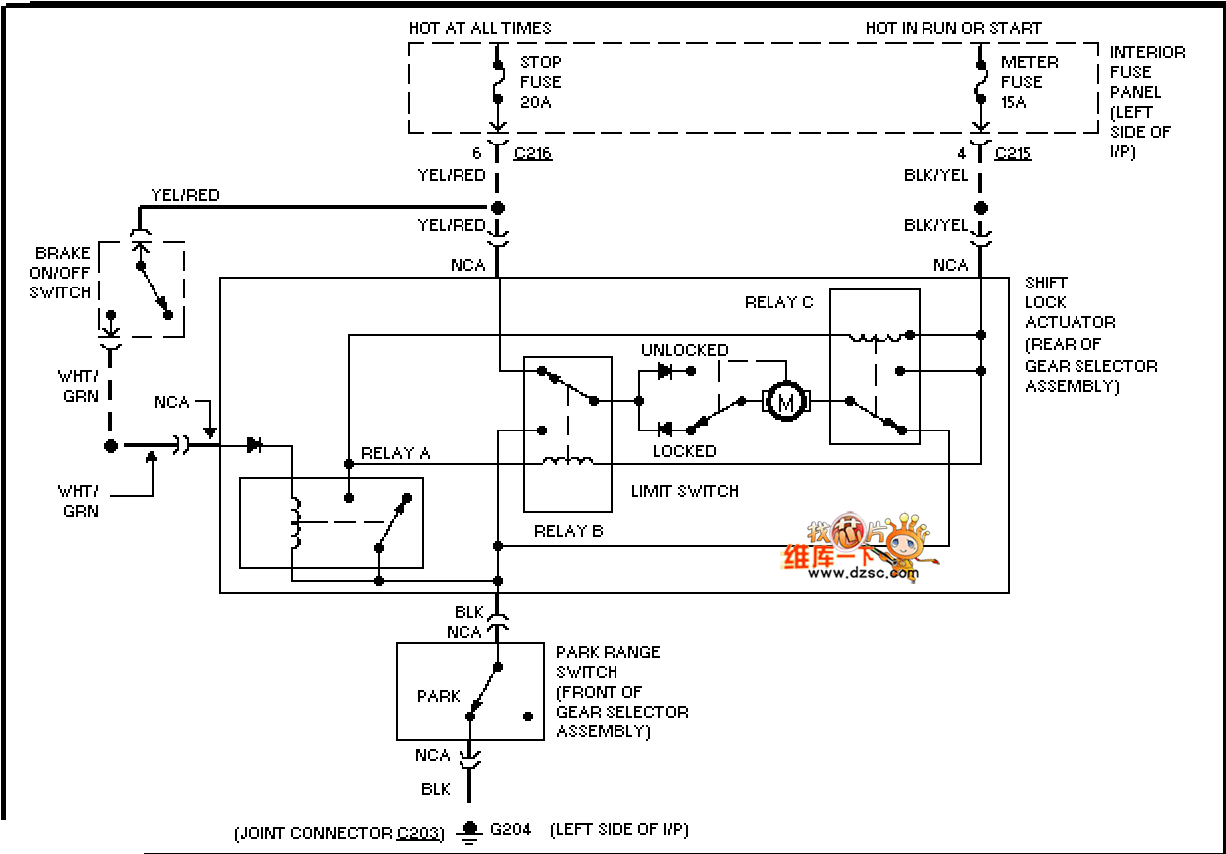

The Mazda 96 PROBE shift gear interlocking circuit is shown in the picture.
