Manual starting monostable circuit

Published:2011/6/4 10:58:00 Author:John | From:SeekIC

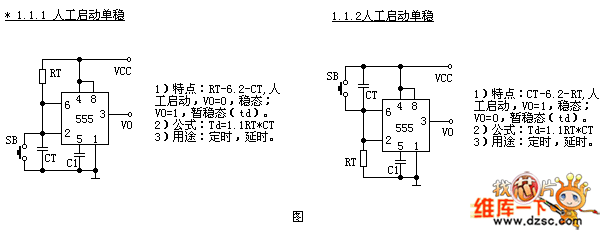

Manual starting monostable circuit is divided into two different units according to locations of timing resistor and timing capacitor. These two units are coded by 1.1.1 and 1.1.2 respectively. In the form of their input ends, that is to say that the structural characteristics of the circuit are: RT-6.2-CT and CT-6.2-RT . 1)Features: “RT-6.2-CT”, manual start，V0=0，steady-state；V0=1, temporary steady-state(td).2)Formula: Td=1.1 RT*CT3)Functions: timing and time delay. 1)Features: “CT-6.2-RT”, manual start，V0=0，steady-state；V0=1, temporary steady-state(td).2)Formula: Td=1.1 RT*CT3)Functions: timing and time delay.
