Low-Cost Wien Oscillator Circuit Composed of F007

Published:2011/5/3 20:24:00 Author:Sue | Keyword: Low-Cost, Wien, Oscillator | From:SeekIC

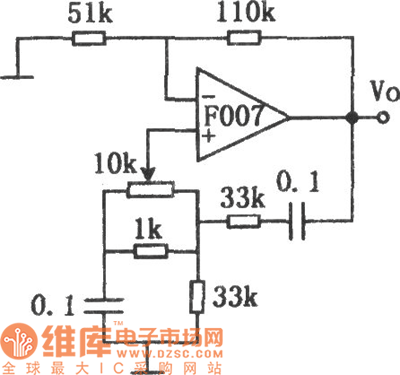

As seen in the figure is the low-cost wien oscillator circuit. On one hand, it can solve the problem of using expensive inductance coil in ordinary oscillatory circuit, on the other hand it can avoid the problem of using duplex potentiometer to adjust frequency in ordinary wien bridge oscillator. Ituses onlyone potentiometer to adjust fequency, so the cost is low. Despite of the narrow range of adjusting frequency,it is still useful when the frequency range is not large, and this circuit has a good stability.
