Jetta manual system, fuel pump, fuel level sensor circuit

Published:2011/3/27 20:58:00 Author:Joan | Keyword: Jetta , manual system , fuel pump , fuel level sensor | From:SeekIC

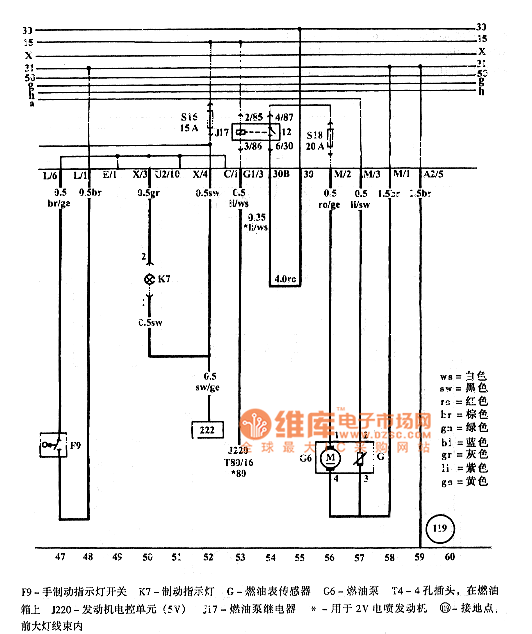

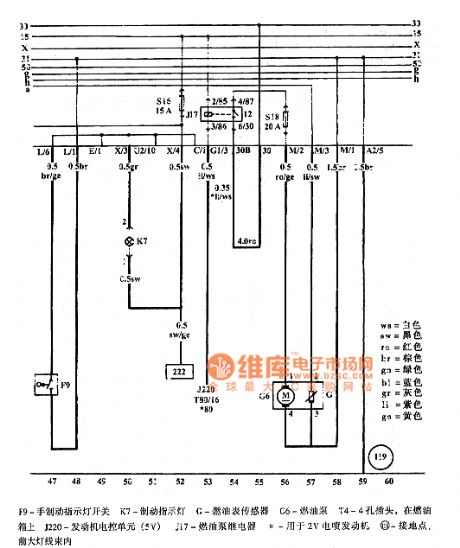

Above is Jetta manual system, fuel pump, fuel level sensor circuit. ws=whitesw=blackro=redbr=browngn=greenbl=bluegr=grayli=purplege=yellow F9-Hand brake indicator light switchK7-Brake indicator lightG-Fuel gauge sensorC6-Fuel pumpT4-4-hole plug, on the fuel tankJ220-Engine (5Y)H-EFI engine for 2VM19-Ground point, in the headlight wire harness
