Jetta interior light, luggage light, license plate light circuit

Published:2011/3/23 20:37:00 Author:Joan | Keyword: Jetta , interior light , luggage light , license plate light | From:SeekIC

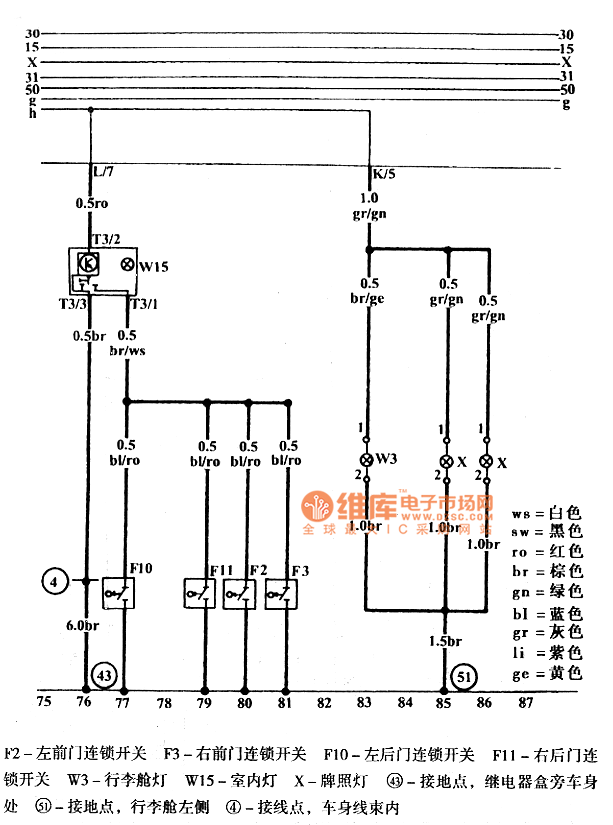

ws=whitesw=blackro=redbr=browngn=greenbl=bluegr=grayli=purplege=yellow F2 - Left front door chain switchF3 - Right front door chain switchF10 - Left rear door chain switchF11 - Right rear door chain switchW3 - Luggage compartment lightW15 - Interior lightX - License plate lamp43 - Ground point, near the relay box next to the car body51 - Ground point, the left side of luggage compartment4 - Connection points, Within the body harness
