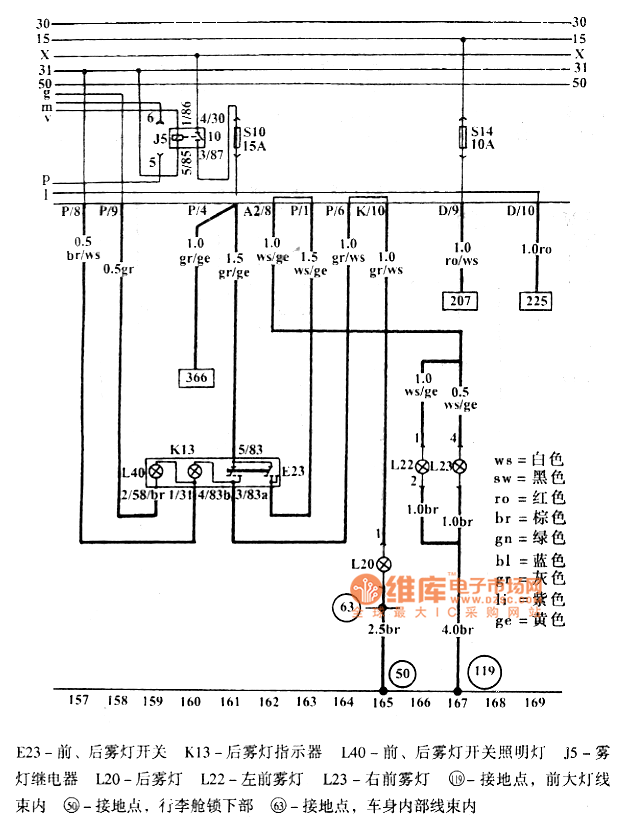

Jetta front and rear fog lamp circuit

Published:2011/3/27 22:42:00 Author:Joan | Keyword: Jetta , fog lamp | From:SeekIC

E23-Front and rear fog lamp switchK13-Rear fog lamp indicatorL40-Front, rear fog lamp switchJ5-Fog light relayL20-Rear fog lampL22-Left front fog lampL23-Right front lamp119-Ground point, Within the headlight wiring harness50-Ground point, in the lower part of the luggage compartment lock63-Ground point, in the car body internal wire harness Above is Jetta front and rear fog lamp circuit.
