Jetta anti-theft system circuit

Published:2011/3/21 1:13:00 Author:Joan | Keyword: Jetta , anti-theft system | From:SeekIC

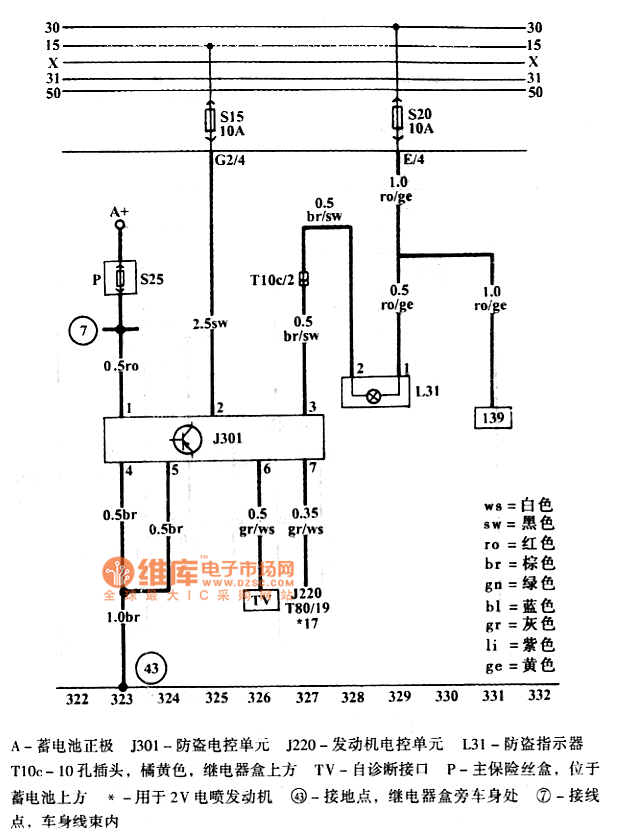

The figure is Jetta anti-theft systemcircuit.ws=whitesw=blackro=redbr=browngn=greenbl=bluegr=grayli=purplege=yellow A-Battery J301-Anti-theft ECUJ220-Engine Electronic Control UnitL31-Anti-theft indicatorT10c-10-hole plug, orange, in the top of the relay boxTV-Self-diagnostic interfaceP-Main fuse box, located above the battery*-For 2V EFI engine43-Ground point, At the relay box next to the body7-Connection Point, Within the body harness
