Jetta airbag system schematic

Published:2011/3/18 1:18:00 Author:Joan | Keyword: Jetta , airbag system | From:SeekIC

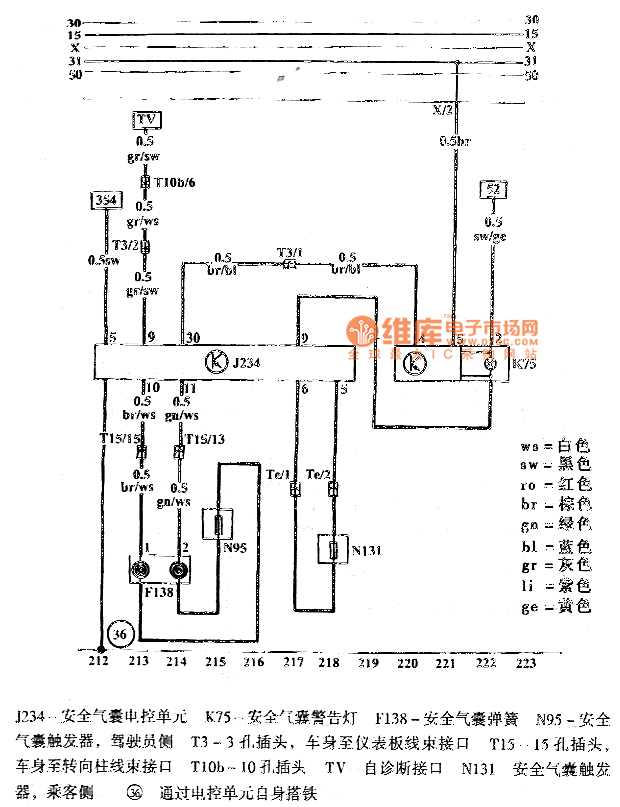

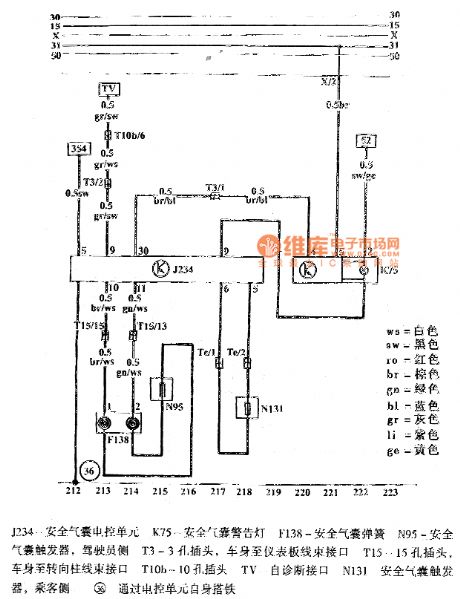

J234-AirbagECU K75-Airbag warning light F138-Airbag spring N95-Airbag Trigger, driver side T3-3 hole plug, The car body to the instrument panel wiring harness interface T15-15 hole plug, The car body to the steering column harness Interface T10b-10 hole plug TV-Self-diagnosis interface N131-Airbag Trigger, passenger side 36-Ground through theECU itself The figure is the Jetta airbag system schematic.
