Jetta Air condition switch, blower, 5V motor circuit

Published:2011/3/21 4:13:00 Author:Joan | Keyword: Air condition switch, blower, motor | From:SeekIC

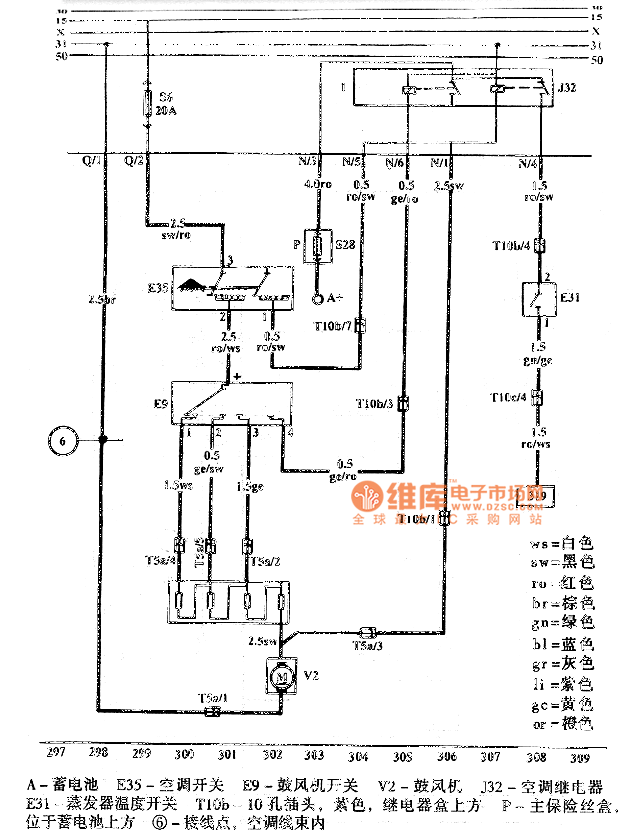

The figure is Jetta Air condition switch, blower, 5V motor circuit. ws=whitesw=blackro=redbr=browngn=greenbl=bluegr=grayli=purplege=yellowor=orange A-BatteryE35-Air condition switchE9-blower switchV2-blowerJ32-Air condition relayE31-Evaporator temperature switchT10b-10 hole plugs, yellow, in the top of the relay boxP-Main fuse box, located above the battery6-Connection Point, Within the air condition harness
