Jetta Air condition switch, blower, 2V motor circuit

Published:2011/3/23 1:18:00 Author:Joan | Keyword: Jetta , Air condition switch , blower , 2V motor | From:SeekIC

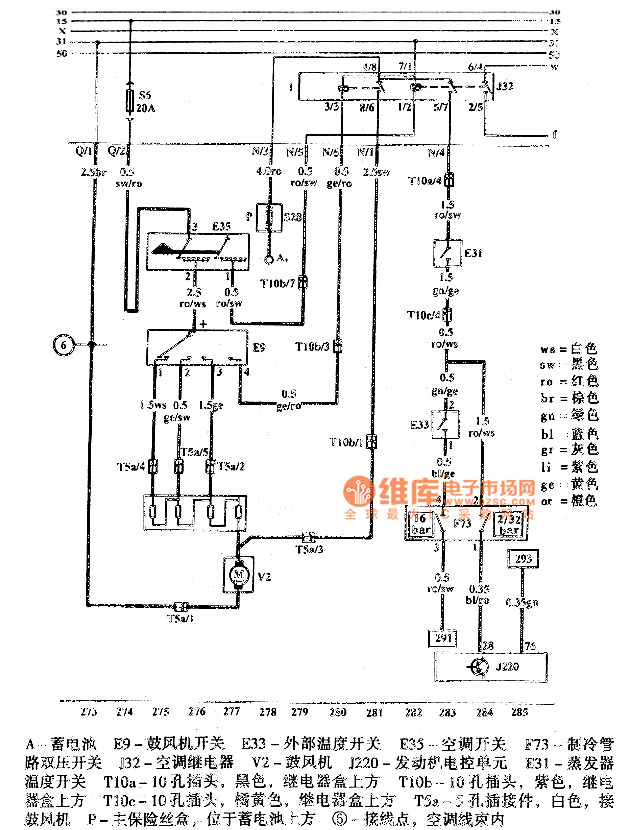

Above is Jetta Air condition switch, blower, 2V motor circuit. A-BatteryE9-Blower switchE33-outside temperature switchE35-Air condition switchF73-Cooling pipe dual pressure switch J32-Air condition relayV2-BlowerJ220-Engine ECUE31-Evaporator temperature switchT10a-10-hole plug, black, in the top of the relay boxT10b-10-hole plug, purple, in the top of the relay boxT10c-10-hole plug, orange, in the top of the relay box T5a-5-hole connector, white, connect to blowerP-Main fuse box, located above the battery5-Connect point within the air condition wire harness
