Inverter home electrotherapy

Published:2011/9/12 21:47:00 Author:Ariel Wang | Keyword: Inverter, home electrotherapy | From:SeekIC

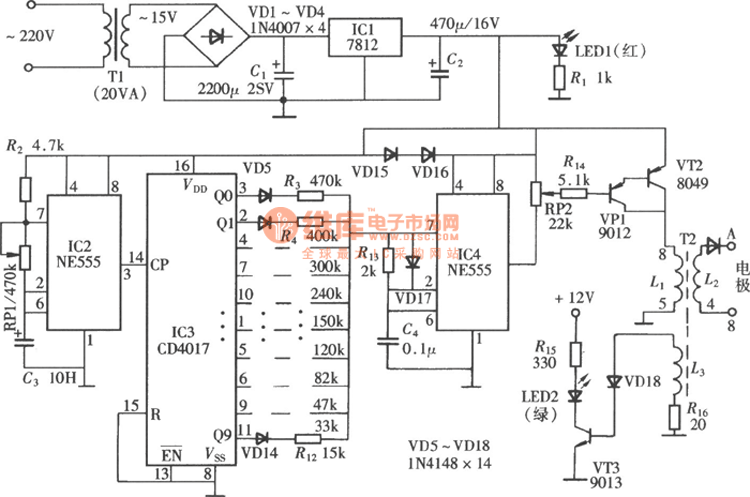

The home electrotherapy has the the output frequency function of more than ten-speed automatic loop ransformation .The pulse intensity and the speed of the frequency conversion can be adjusted freely.It outputs a broad spectrum.The broad spectrum is very suitable to be as the massor .And it can dissipate fatigue and to be as an adjuvant treatment of some common diseases. The circuit consists of the variable frequency pulse oscillator, the oscillation frequency conversion controller and the pulse output circuit.
