Infrared sensor music outlet control circuit with HT-7610A

Published:2011/4/6 1:13:00 Author:Rebekka | Keyword: Infrared sensor , music outlet control | From:SeekIC

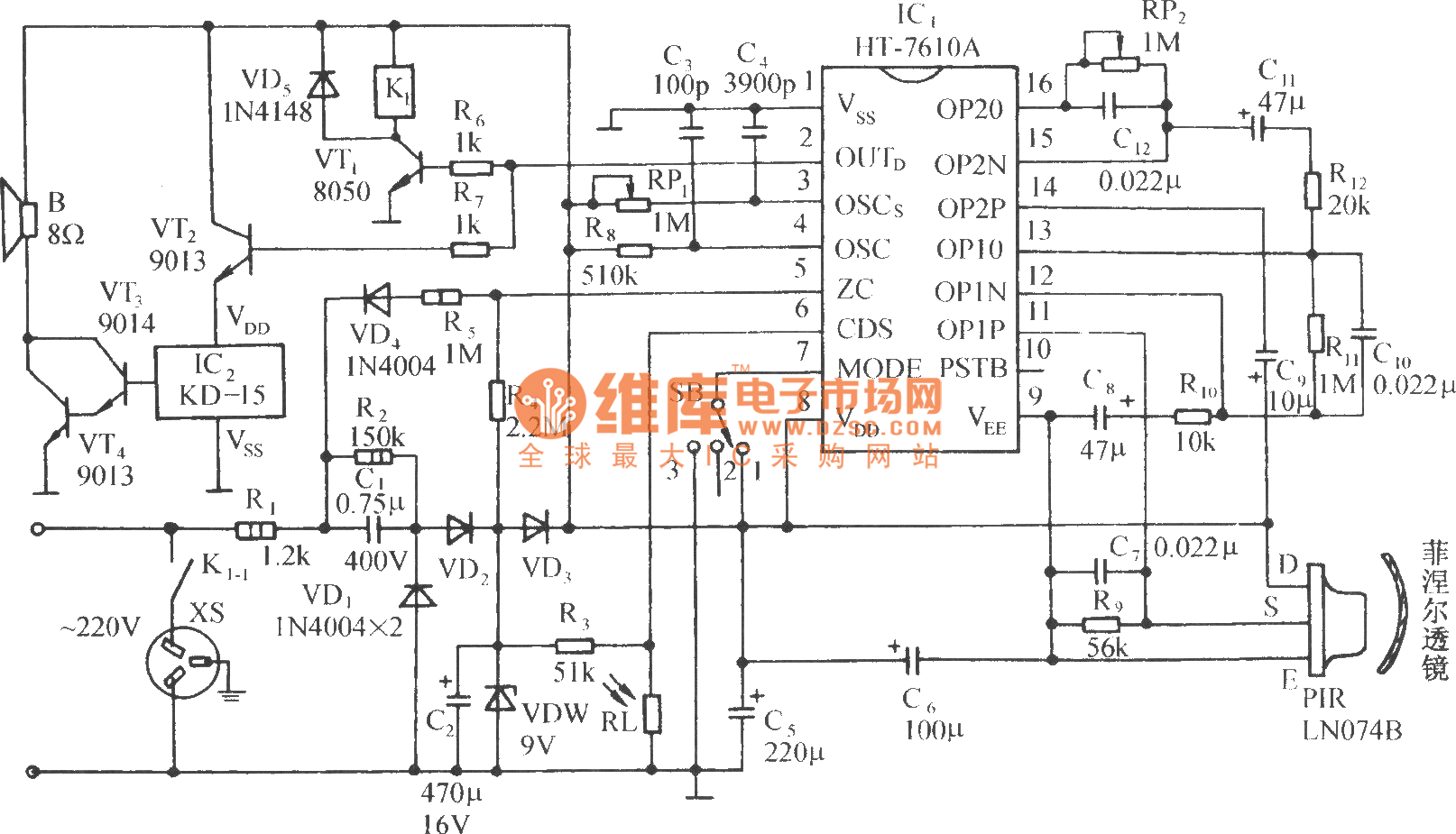

Circuit is shown as below. It includes pyroelectric infrared sensor, infrared sensor specific integrated control circuit, relay control circuit, the music for the voice circuit and 9V power supply.
