IR remote control dimmer circuit diagram

Published:2011/4/8 1:41:00 Author:Rebekka | Keyword: IR remote control dimmer | From:SeekIC

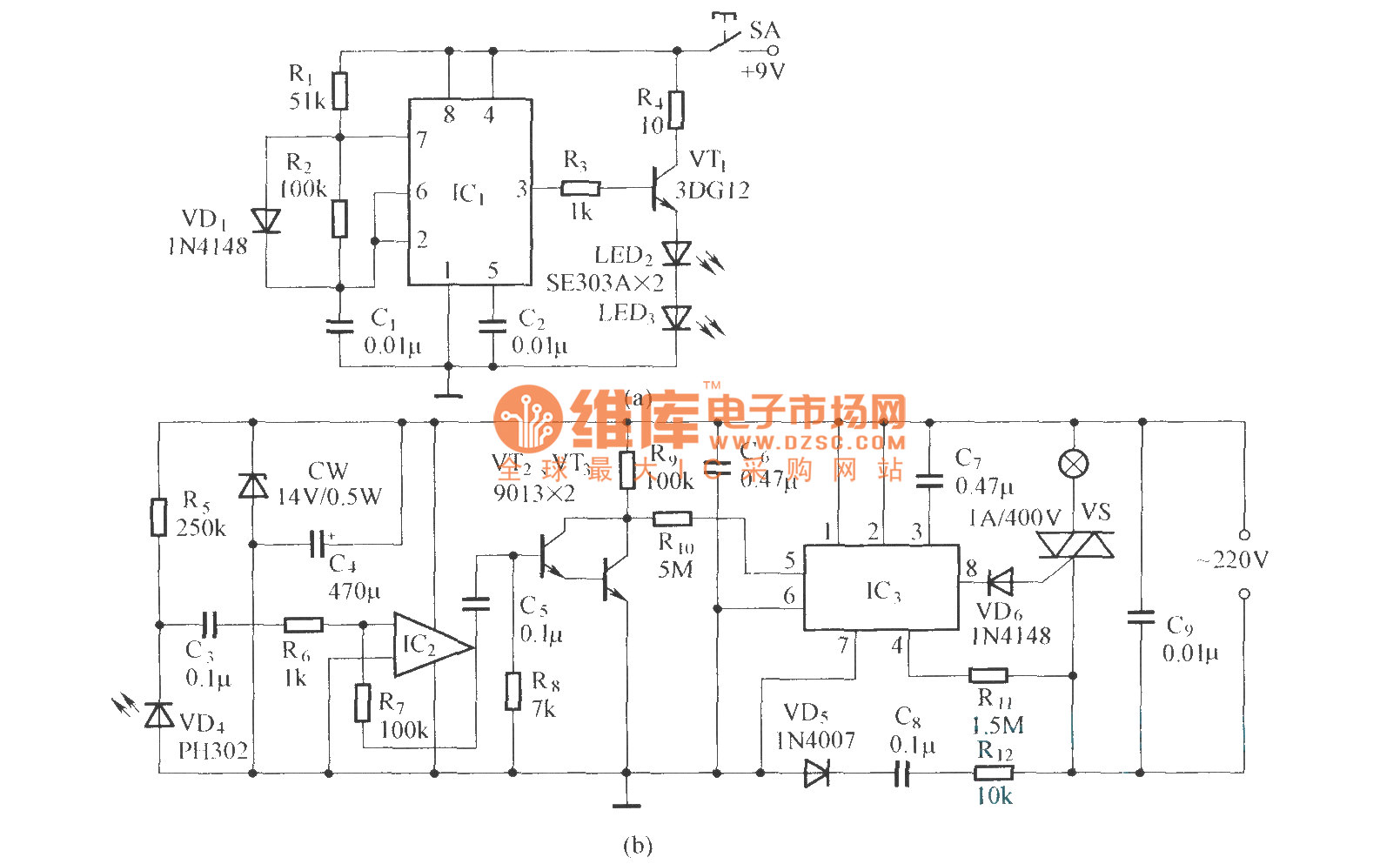

Infrared remote control transmitter diagram: Infrared remote control receiver power amplification and dimming control circuit. IC1 in IR emitter uses NE555, LM555 etc., IC2 can use μA741 or LM324. IC3 can use LS7232, can also be uses CS7232, SM7232, etc.
