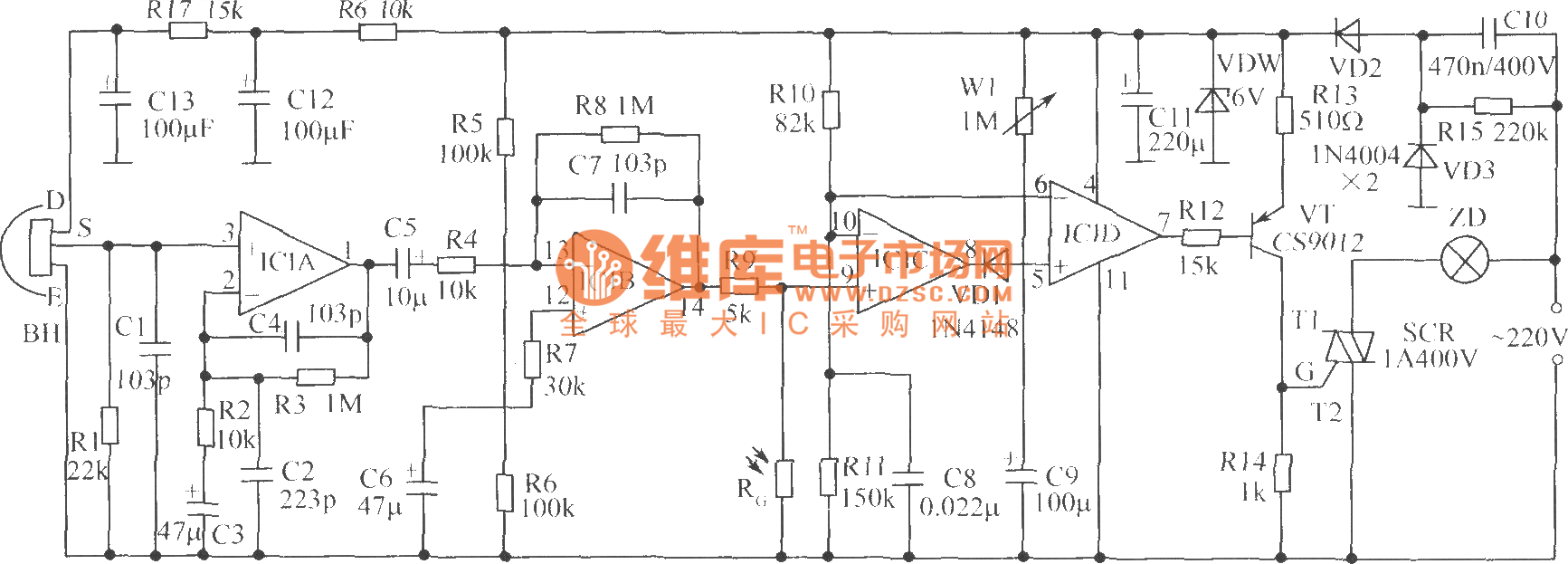

Human body thermoelectric automatic energy-saving lamps circuit diagram

Published:2011/9/26 2:10:00 Author:Rebekka | Keyword: energy-saving lamps | From:SeekIC

IC1 is four operational amplifiers LM324. Sensor BH is RS03. If you use some other types of sensors, it should have the right design of the amplifier gain support, but it must select two-component type.
