Homemade Simulated Gunshot Generator Circuit

Published:2011/4/22 20:27:00 Author:Sue | Keyword: Homemade, Simulated, Gunshot, Generator | From:SeekIC

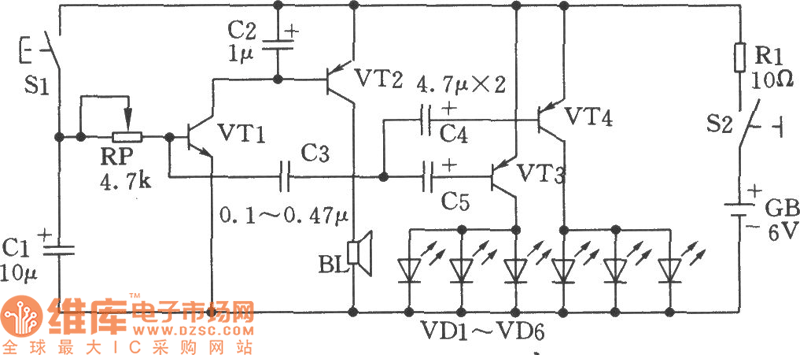

Complementary audio oscillator composed of two transistors can be used as simulated gunshot generator, and the homemade gunshot is very realistic with lingering sound. As seen in the figure, the selections of components are as follows: Triode VT1,VT2: 9014, β=85-115; VT3,VT4: 9015, β=65-85. S1: AN4; S2: KN3. Light emitting diode VD1~VD6: BT201(other types can be used, but luminotrons with low forward voltage and high luminous efficiency are better). Cell GB: 4F22DC6V laminated cells. Loudspeaker BL: 8Ω 0.25W.
