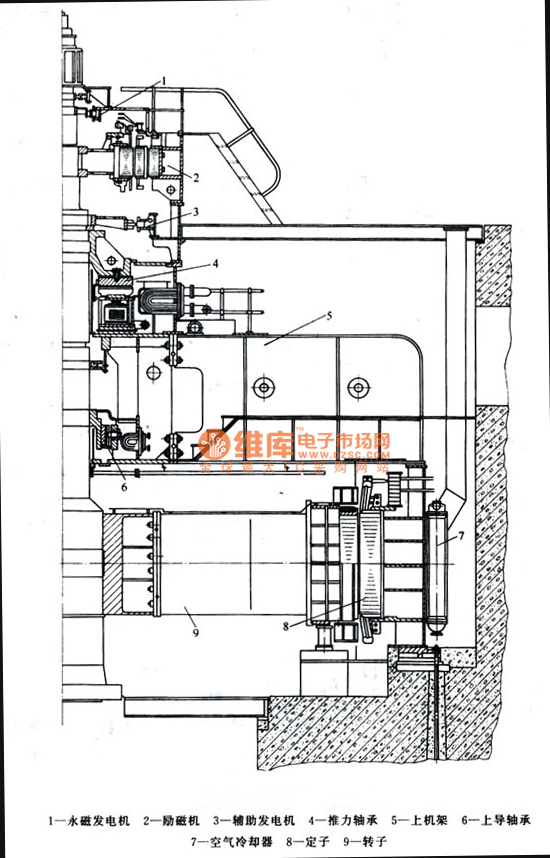

Hanging hydro-generator structure diagram

Published:2011/5/12 22:27:00 Author:Ecco | Keyword: Hanging , hydro-generator, structure | From:SeekIC

1 - Water magnetic generator, 2 - exciter, 3 - auxiliary generators, 4 - thrust bearing, 5 - on the rack, 6 - Upper Guide Bearing, 7 - air cooler, 8 - Stator, 9 - Rotor
