H_BRIDGE_AC_MOTOR_DRIVE_CIRCUIT

Published:2009/7/17 4:13:00 Author:Jessie | From:SeekIC

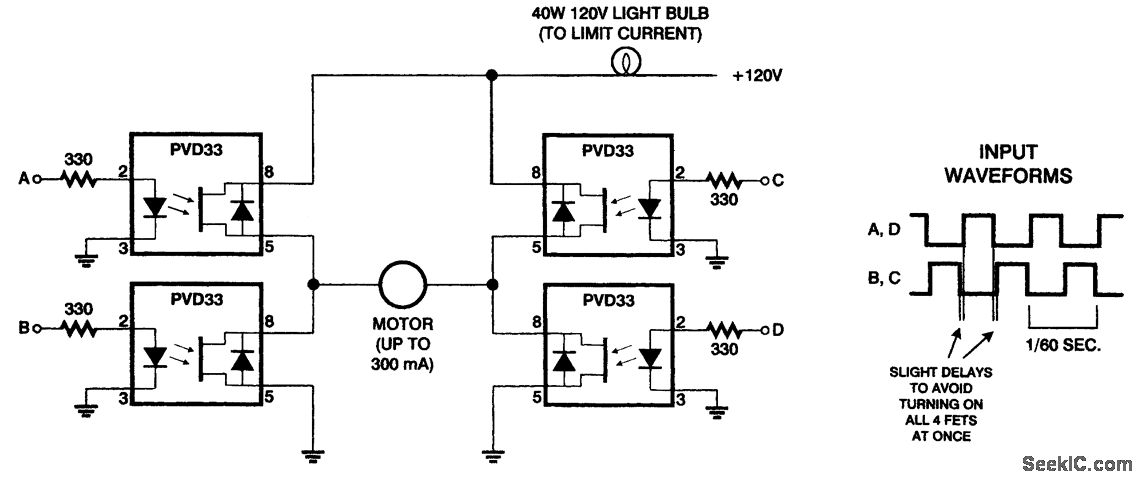

This circuit can be used to drive ac motors from a dc source. The PVD33 devices are by International Rectifier and are highpowered optoisolators.
