HIGH_VOLTAGE_PULSE_GENERATOR

Published:2009/7/16 3:48:00 Author:Jessie | From:SeekIC

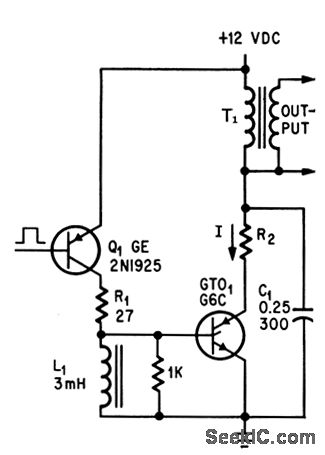

Square-wave input to transistor Q1 triggers scr on and off, inducing high-voltage damped-oscillation pulse in secondary of T1. Used for auto ignition and other applications requiring up to 30 kv from 0 to 400 times per second. -D. R. Grafham, Now the Gate Turnoff Switch Speeds Up D-C Switching, Electronics, 37:12, p 64-71.
