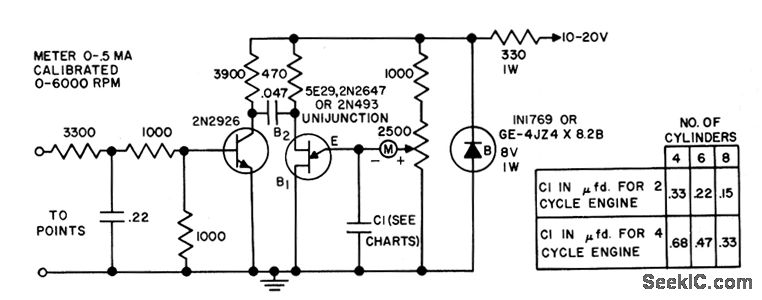

HIGH_PRECISION_AUTO_TACHOMETER

Published:2009/7/16 3:15:00 Author:Jessie | From:SeekIC

For auto ignition system having 12-v negative ground. Gives ultralinear readings on meter scale. Transistor Manual, Seventh Edition, General Electric Co., 1964, p 380.
