HEADLIGHT_DIMMER_1

Published:2009/7/16 3:55:00 Author:Jessie | From:SeekIC

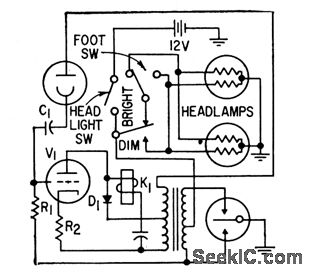

Automatically switches from high to low beam when oncoming head-light strikes photocell. Driver may dim lights manually at any time and leave them dim. When lights have been dimmed automatically, momentary reduction of light on photo-cell will not cause return to high beam.-W.E. Bushor, Electronics and the American Auto-mobile, Electronics, 31:47, p 73-79.
