Golf Bora airbag system schematic

Published:2011/3/23 22:05:00 Author:Joan | Keyword: Golf , Bora , airbag system | From:SeekIC

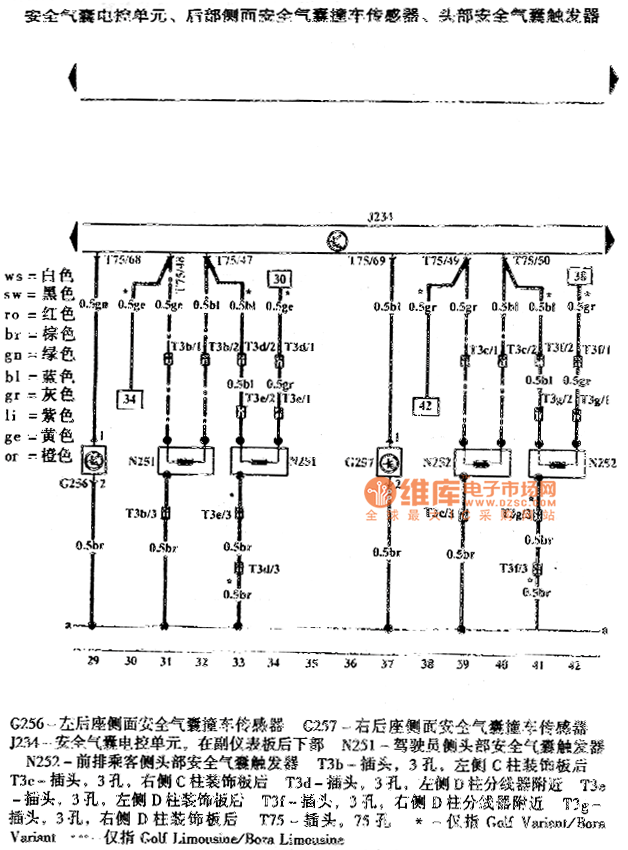

Above is Golf Bora airbag system schematic. ws=whitesw=blackro=redbr=browngn=greenbl=bluegr=grayli=purplege=yellowor=orange Airbag ECU, airbag coil spring, front airbag trigger, side airbag crash sensor D-Ignition switchF138-Airbag coil springG179-Driver side airbag crash sensorG180-Front passenger side airbag crash sensorsH-Speaker control mechanismJ4-Two-tone horn relayJ234-Airbag ECU, Lower after vice dashboardN95-Driver side airbag triggerN131-Front passenger side airbag trigger 1T5b、T5j-Plug, 5-holeT75-Plug, 75-hole42-Ground point, near the steering column49-Ground point, On the steering column81-Ground point 1, in the instrument panel wiring harness109-Ground connection, in the airbag wiring harness135-Ground connection 2, in the instrument panel wiring harnessA2-Positive connection (15), in the instrument panel wiring harness Airbag ECU, side airbag trigger, seat belt tension trigger J17-Fuel pump relayJ234-Airbag ECU, after the lower part of vice dashboardJ379-Central lock and anti-theft ECUJ393-Comfort system central ECUN153-Driver side seat belt tension triggerN154-Front passenger side seat belt tension triggerN199-Driver side side airbag triggersN200-Front passenger side airbag triggerT2-plug, 2-hole, under the driver's seatT3a-plug, 2-hole, under the front passenger seatT23-plug, 23-holeT24-plug, 24-holeT75-plug, 75-holeA125-Connection (crash signal), in the instrument panel wiring harness**-Before April 2001---After May 2001 Airbag ECU, the rear side of the airbag crash sensor, the head airbag trigger G256-Left rear seat side airbag crash sensor G257-The right rear seat side airbag crash sensorJ234-Airbag ECU, in the lower right of vice instrument panel N251-Driver side head airbag triggerN252-Front passenger side head airbag triggerT3b-Plug, 3-hole, behind the left C-pillar decorative panelT3c-Plug, 3-hole, behind the right of C-pillar decorative panelT3d-Plug, 3-hole, near the left of D column splitterT3e-Plug, 3-hole, behind the left of D column decorative panelT3f-Plug, 3-hole, near the right of D column splitterT3g-Plug, 3-hole, behind the right D column decorative panelT75-Plug, 75-hole*-Only refer to Golf Variant/Bora Variant---Only refer to Golf Limousine/Bora Limousine
