Golf Bora Telephone Circuit

Published:2011/7/26 7:09:00 Author:Robert | Keyword: Golf, Bora, Telephone | From:SeekIC

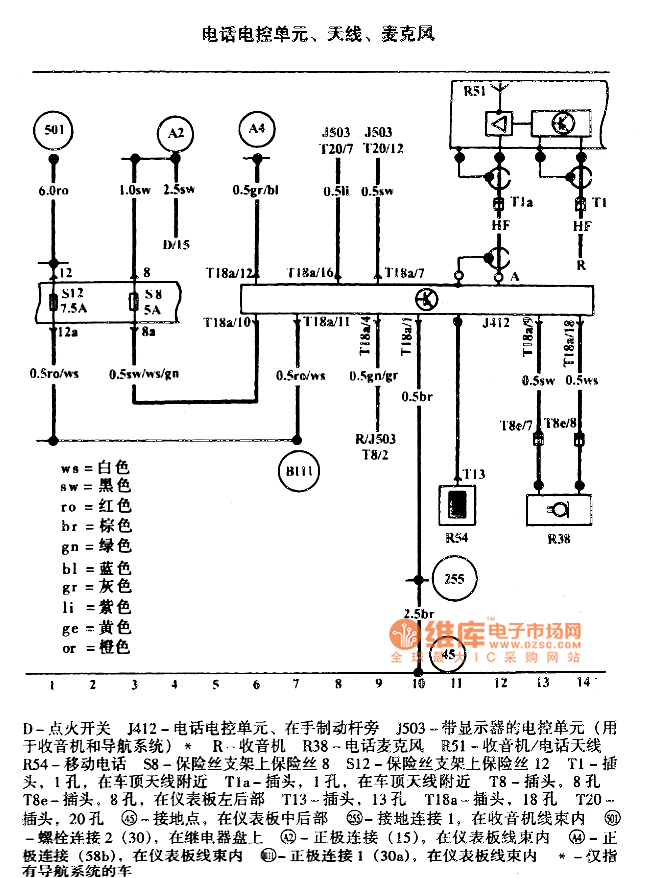

The picture shows the Golf Bora telephone circuit. The picture shows the telephone electrical control unit, antenna, microphone. The D is ignition switch. The J412 is telephone electrical control unit which is beside the hand brake lever. The J503 is the electrical control unit with monitor (it is used for radio and navigation system). The R is radio. The R38 is telephone micrphone. The R51 is radio/telephone antenna. The R54 is mobile phone. The S8 is the fuse 8 on the fuse holder. The S12 is the fuse 12 on the fuse holder. The T1 is plug with 1 hole which is beside the car roof antenna. The Tla is plug with 1 hole which is beside the car roof antenna. The T8 is plug with 8 holes. The T8e is plug with 8 holes which is in the left-rear dashboard. And so on.
