Golf Bora Instrument Cluster Circuit

Published:2011/7/25 10:17:00 Author:Robert | Keyword: Golf, Bora, Instrument, Cluster | From:SeekIC

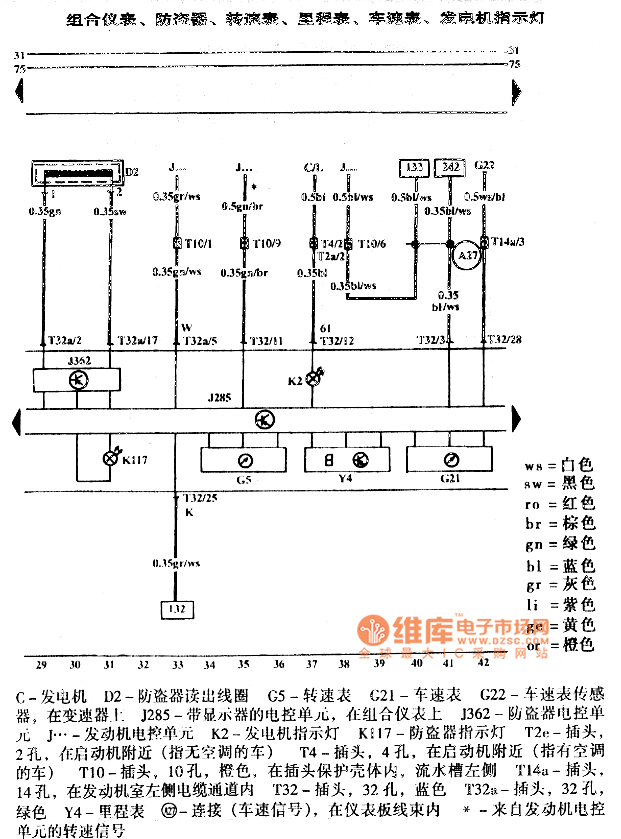

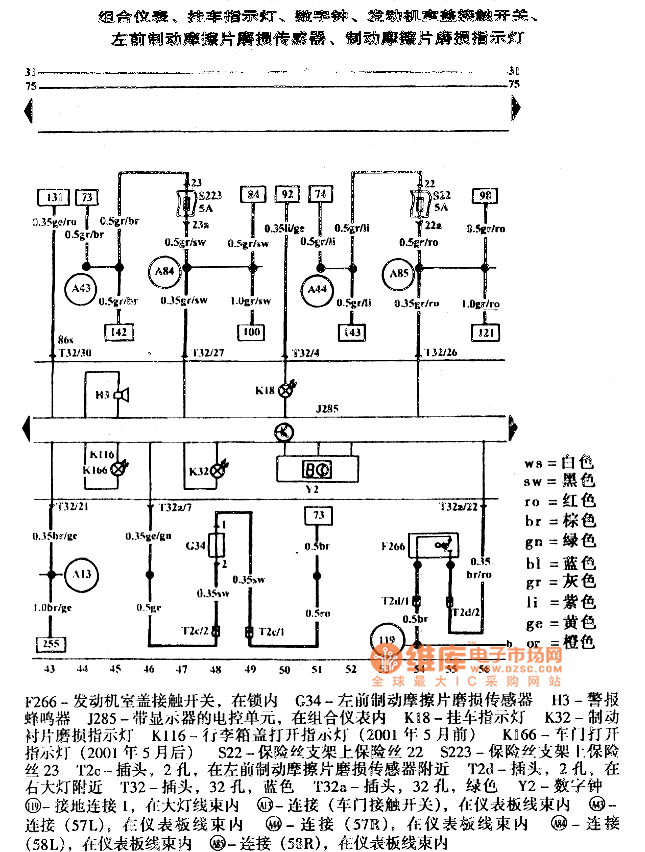

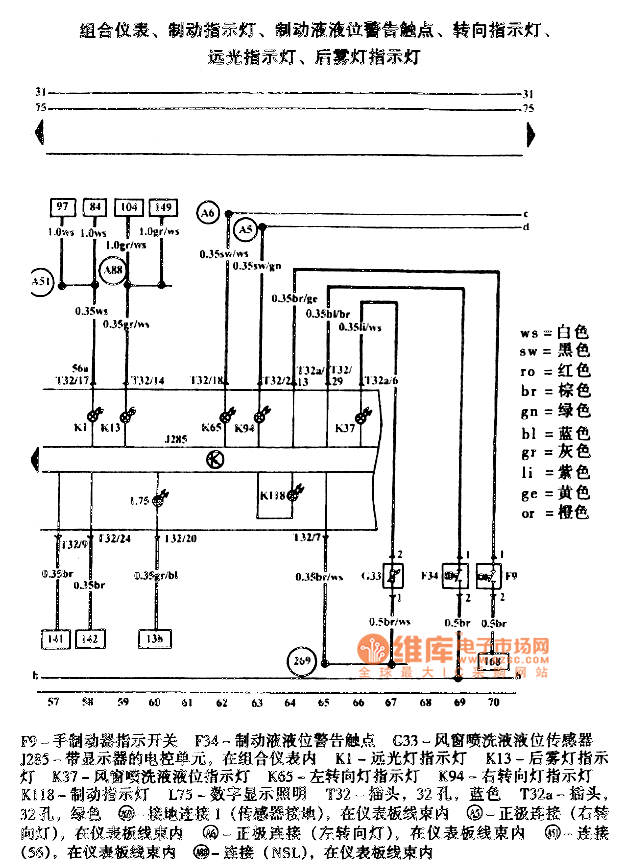

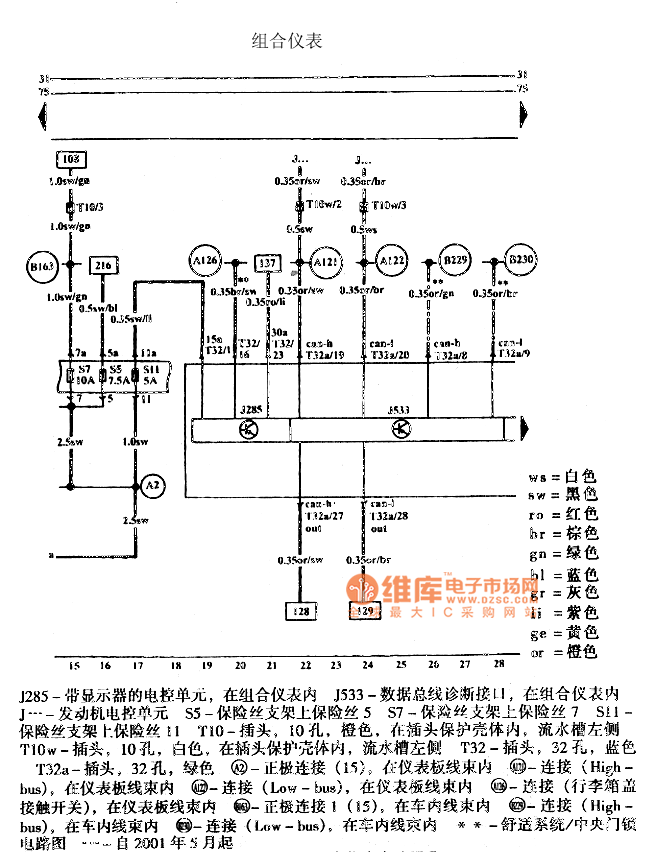

The pictures show the Golf Bora instrument cluster circuits. The first picture shows the instrument cluster circuit. The second picture shows the instrument cluster, anti-theft circuit, tachometer, odometer, speedometer, power generator indicating lamp. The third picture shows the instrument cluster, trailer indicating lamp, digital clock, engine compartment lid contacting switch, left-front brake friction plate wear sensor, brake friction plate wear indicating lamp. The fourth picture shows the instrument cluster, brake indicating lamp, brake liquid level alarm contactor, turning indicating lamp, high beam indicating lamp, rear fog indicating lamp.
