Electronic Tuner Circuit Composed of CC4040

Published:2011/4/22 20:30:00 Author:Sue | Keyword: Electric, Tuner, | From:SeekIC

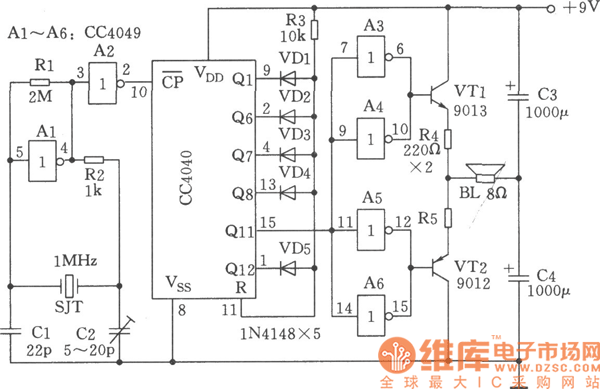

As seen in the figure is the electronic tuner circuit. It can generate International standarded A-tone of 440Hz and can be used as tuner for band.
