Electronic Bird Repeller (5)

Published:2011/5/20 5:33:00 Author:Sue | Keyword: Electronic, Bird, Repeller | From:SeekIC

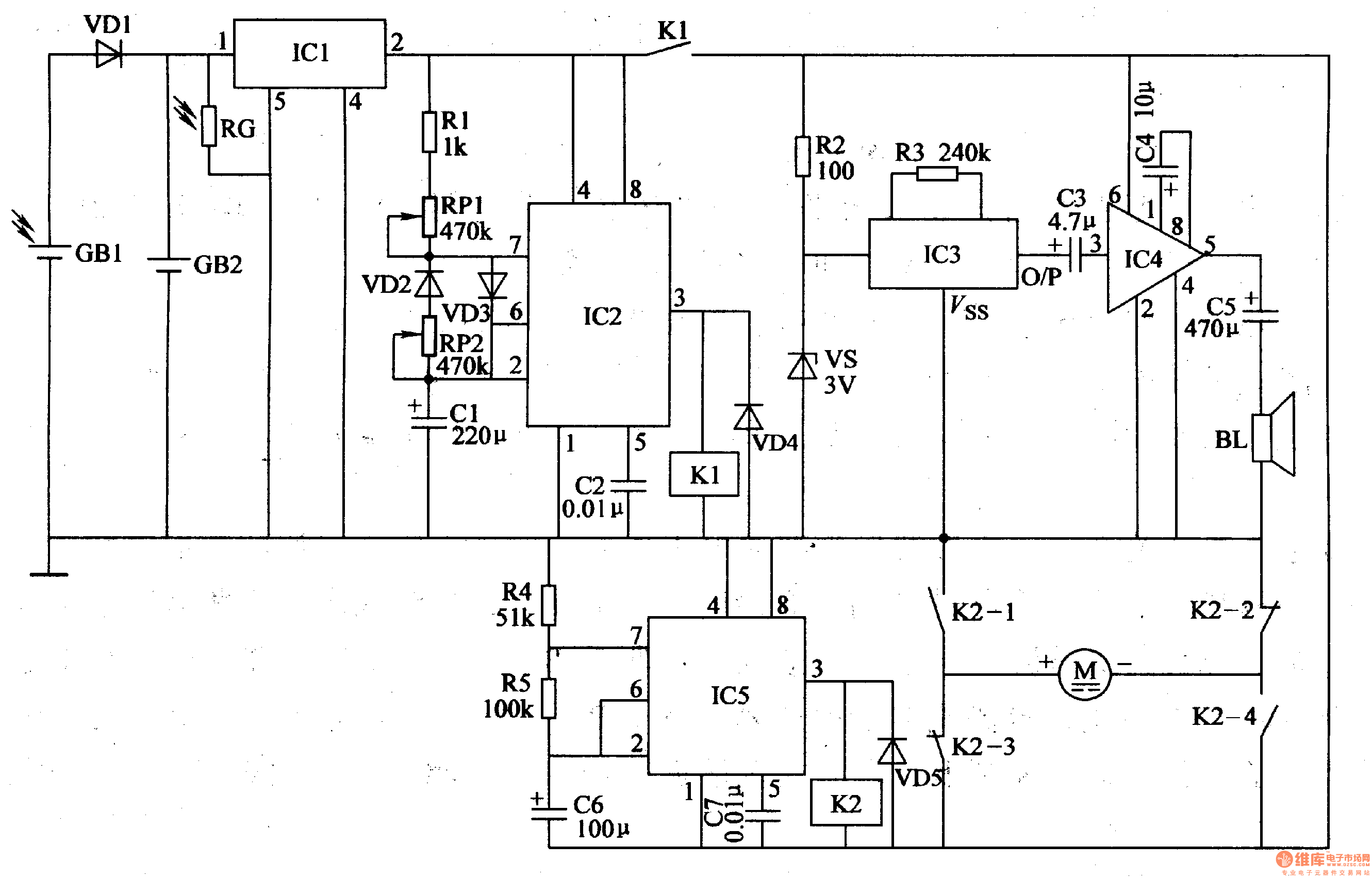

In the daytime, IC1's inside switch is on and A will oscillate, outputting low frequency oscillator signals. When IC2's 3 pin outputs high level, K1 is connected. IC2's 2 pin will output 6 V voltage which will provide driving circuit with working voltage. The other circuit will provide IC3 with 3V working voltage. When IC2's 3 pin outputs low level, IC3-IC5 stops working. When IC3 begins to work, O/P outputs signals, and BL makes a sound of fire cracker. In the evening, VD1 is disconnected and the circuit doesn't work.
