Daewoo RACER car rear window defroster circuit diagram

Published:2011/5/16 3:24:00 Author:Nicole | Keyword: Daewoo RACERcar, rear window, defroster | From:SeekIC

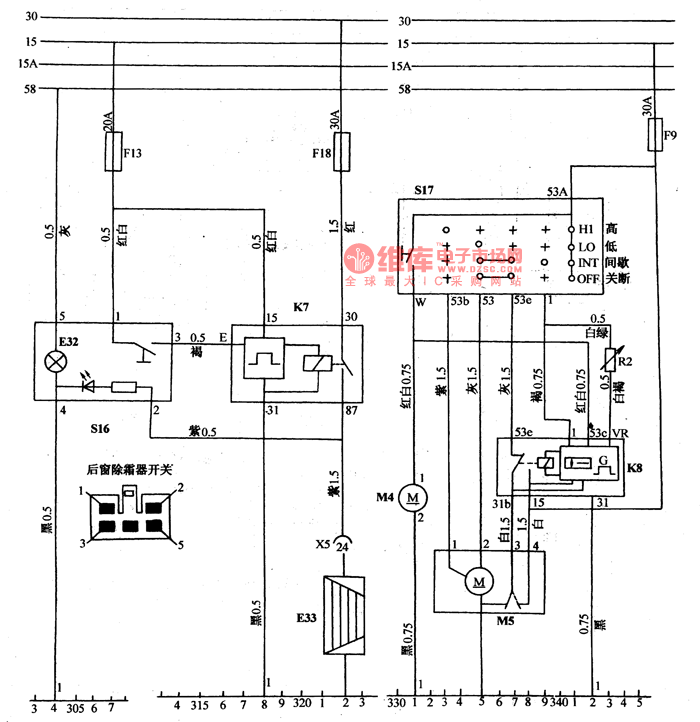

(8)rear window defroster(as shown in the figure10) When the touch switch S16 is connected one time, it can make the timing relay K7 contact point close for 10 minutes, then the rear window defroster resistance curve is energizing and heating, at the same time, LED of S16 switch turns on, after 10 minutes, the circuit is cut off automatically. If you want to cut off it early, you can touch it again.
