Composed of LMl812 0 ~ 6m ranging circuit diagram

Published:2011/4/1 20:23:00 Author:Rebekka | Keyword: ranging circuit | From:SeekIC

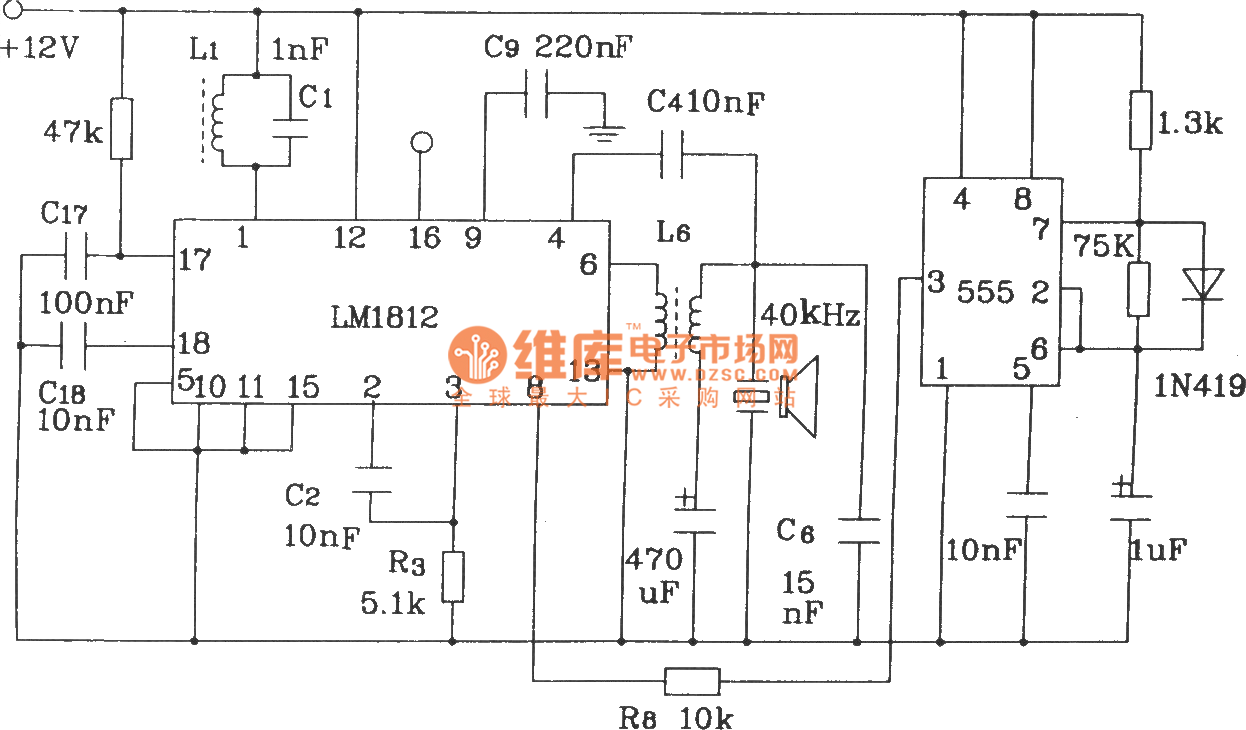

Composed of LMl812 0 ~ 6m ranging circuit diagram is shown as below. Composed of LMl812 0 ~ 6m ranging circuit. Its send and receive were acted as the same ultrasonic transducer. The working frequency is 40kHz.
